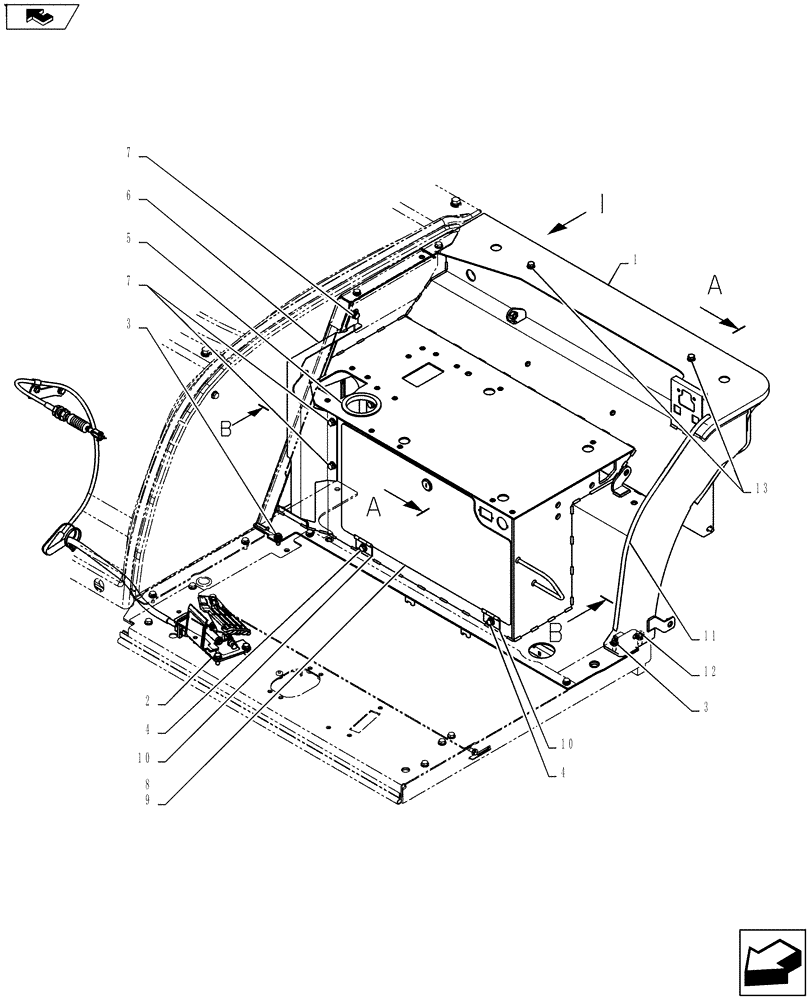

Запчасти Case CX55BMSR (01-050[01]) - CONTROLS, OPERATORS (CANOPY) (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Operators Controls (Canopy) PY03M00023F1, Start Serial: PS02-00101

1шт.

1

NSS

NOT SOLD SEPARAT

Stand Assembly, PY10M01111F1

1шт.

2

NSS

NOT SOLD SEPARAT

Pedal Install PY55M00002F1

1шт.

3

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

4

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

13шт.

5

EW03E01010P1

GROMMET

1шт.

6

PY03M01306P1

COVER

1шт.

7

PA03M01093D1

BOLT

Sems

3шт.

8

NSS

NOT SOLD SEPARAT

Cover Assembly PY10M01090F1

1шт.

9

PY10M01091P1

COVER

1шт.

10

PY10M01057P1

HINGE

2шт.

11

YY22P01010D1

TRIM

1шт.

12

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

13

PA03M01093D3

BOLT

Sems

2шт.
