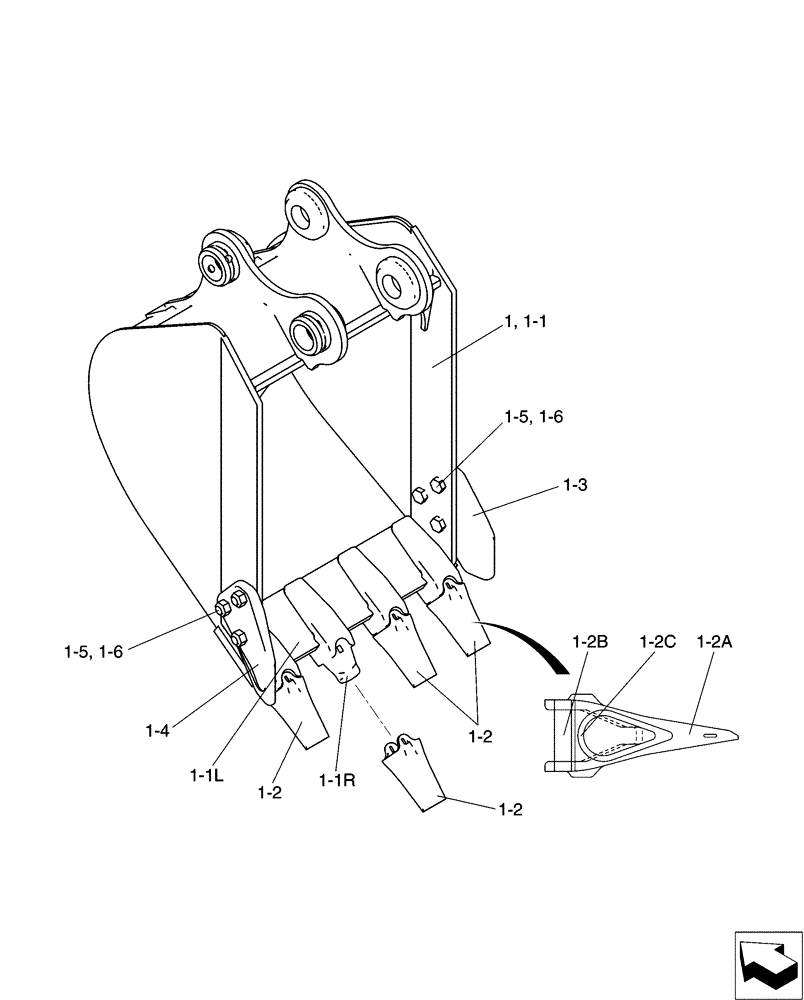

Запчасти Case CX55BMSR (03-025[04]) - BUCKET, ASSY (750W) (84) - BOOMS, DIPPERS & BUCKETS

.

Bucket Assembly 750w PY61B00108F1

1шт.

1

PY61B00091F1

BUCKET

Assembly, 1-1 - 1-6, Serial Range: PS02-00101-PS02-00107

1шт.

1-1

NSS

NOT SOLD SEPARAT

Bucket Assembly PY61B00092P2, 1-1L - 1-1R

1шт.

1-1l

NSS

NOT SOLD SEPARAT

Cutting Edge

1шт.

1-1r

2412U103

ADAPTER

5шт.

1-2

2412P641F1

BUCKET TOOTH

Assembly, Incl 1-2A - 1-2C

5шт.

1-2a

2412P641E1

BUCKET TOOTH

1шт.

1-2b

2412P641E2

LOCK PIN

1шт.

1-2c

2412P641E3

LOCK

1шт.

1-3

PH69B00003P1

CUTTING EDGE

Side

1шт.

1-4

PH69B00004P1

CUTTING EDGE

Side

1шт.

1-5

ZS13C16040

SCREW

6шт.

1-6

ZN13C16013

NUT

6шт.

1

PY61B00121F1

BUCKET

Assembly, 1-1 - 1-6, Start Serial: PS02-00108

1шт.

1-1

NSS

NOT SOLD SEPARAT

Bucket Assembly PY61B00128P1, 1-1L - 1-1R

1шт.

1-1l

NSS

NOT SOLD SEPARAT

Cutting Edge

1шт.

1-1r

2412U103

ADAPTER

, Serial Range: PS02-00108-PS02-00147

5шт.

1-1r

YJ61B01001P1

ADAPTER

, Serial Range: PS02-00148-PS02-00147

5шт.

1-2

2412P641F1

BUCKET TOOTH

Assembly, Incl 1-2A - 1-2C, Serial Range: PS02-00108-PS02-00147

5шт.

1-2

YJ69B00002F1

BUCKET TOOTH

Assembly, Incl 1-2A - 1-2C, Start Serial: PS02-00148

5шт.

1-2a

2412P641E1

BUCKET TOOTH

, Serial Range: PS02-00108-PS02-00147

1шт.

1-2a

YJ69B00002S001

BUCKET TOOTH

, Start Serial: PS02-00148

1шт.

1-2b

2412P641E2

LOCK PIN

, Serial Range: PS02-00108-PS02-00147

1шт.

1-2b

YJ69B00002S002

PIN

, Start Serial: PS02-00148

1шт.

1-2c

2412P641E3

LOCK

, Serial Range: PS02-00108-PS02-00147

1шт.

1-2c

YJ69B00002S003

RUBBER

, Start Serial: PS02-00148

1шт.

1-3

PH69B00003P1

CUTTING EDGE

Side

1шт.

1-4

PH69B00004P1

CUTTING EDGE

Side

1шт.

1-5

ZS13C16040

SCREW

6шт.

1-6

ZN13C16013

NUT

6шт.
