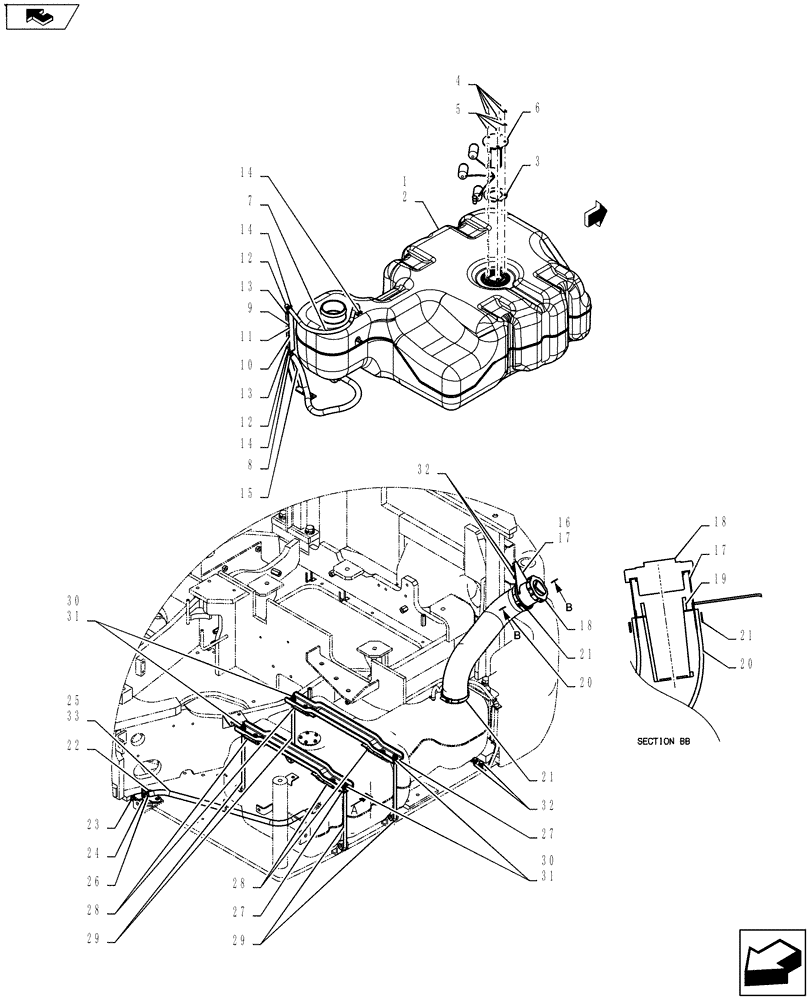

Запчасти Case CX55BMSR (01-012[01]) - FUEL TANK INSTALL (10) - ENGINE

PY20P00001F1

Fuel

1шт.

1

PY20P00002F1

Fuel

1шт.

2

PY20P00004P1

FUEL TANK

Fuel

1шт.

3

PW20P01208P1

PACKING

1шт.

4

ZN18C05004

NUT

5шт.

5

ZW16P05000

WASHER

5шт.

6

PY52S00013F1

SENSOR

Level

1шт.

7

PY20P01015P1

HOSE

1шт.

8

PY20P01052P1

HOSE

1шт.

9

PY20P01017P1

HOSE

1шт.

10

PA20P01090P1

BALL

1шт.

11

PY20P01063P2

BRACKET

1шт.

12

PY20P01014P1

ELBOW

2шт.

13

PH05P01088D6

CLIP

2шт.

14

PH05P01088D5

CLIP

4шт.

15

PU13E01002DA

TUBE

1шт.

16

PY20P00003F1

Fuel

1шт.

17

PY20P01069P1

NECK FILLER

Filler

1шт.

18

PY20P01009P1

CAP

Fuel

1шт.

19

PY50V00007P1

FILTER STRAINER

1шт.

20

PY20P01068P1

HOSE

1шт.

21

ZC16X08100

CLIP

2шт.

22

ZM22C10020

BOLT

Sems

1шт.

23

YN05P00010S007

COCK, DRAIN

1шт.

24

PM05P01046P1

BOSS

1шт.

25

PY20P01012P1

HOSE

1шт.

26

PH05P01088D5

CLIP

1шт.

27

PY20P01056P1

PLATE

2шт.

28

PY20P01071P1

RUBBER INSULATOR

4шт.

29

PY20P01057P2

ROD

4шт.

30

ZN18C08007

NUT

8шт.

31

ZW16P08000

WASHER

4шт.

32

ZM22C08020

BOLT

Sems

4шт.

33

PU13E01002DU

TUBE

1шт.
