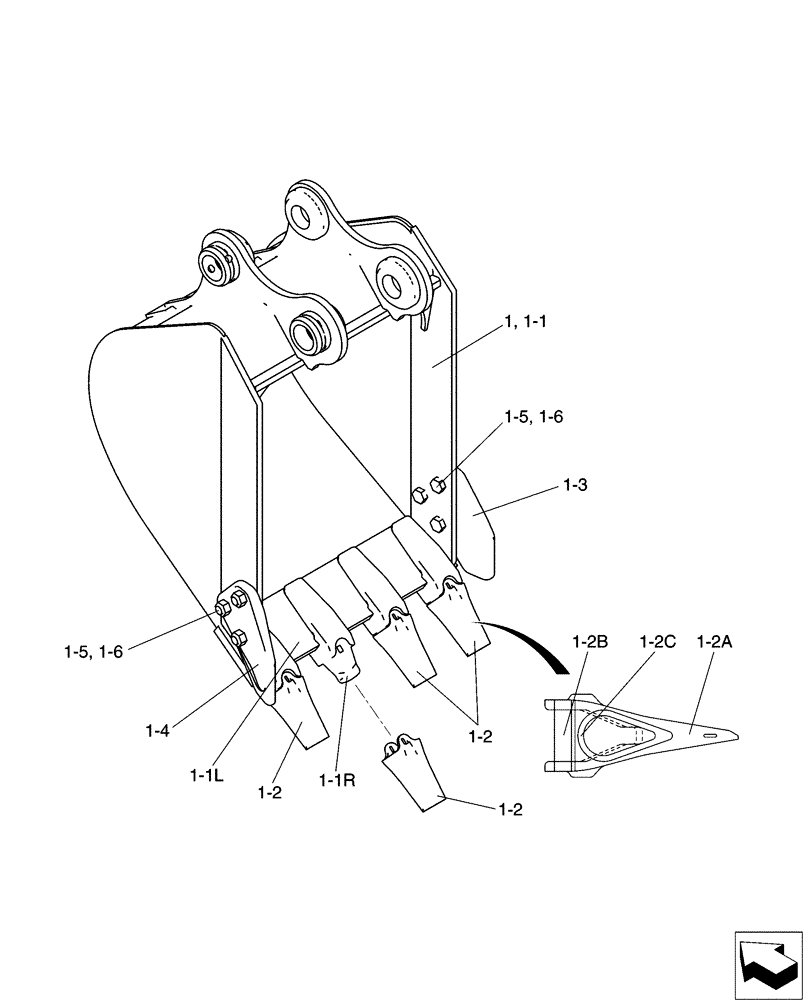

Запчасти Case CX55BMSR (03-025[01]) - BUCKET, ASSY (450W) (84) - BOOMS, DIPPERS & BUCKETS

.

Bucket Assembly 450w PY61B00098F1

1шт.

1

PY61B00099F1

BUCKET

, Serial Range: PS02-00101-PS02-00107

1шт.

1-1

NSS

NOT SOLD SEPARAT

Bucket PY61B00100P1, Incl 1-1L - 1-1R

1шт.

1-1l

PY69B01003P1

CUTTING EDGE

Cutting

1шт.

1-1r

YJ61B01001P1

ADAPTER

3шт.

1-2

YJ69B00002F1

BUCKET TOOTH

Assembly, Incl 1-2A - 1-2C

3шт.

1-2a

YJ69B00002S001

BUCKET TOOTH

1шт.

1-2b

YJ69B00002S002

PIN

1шт.

1-2c

YJ69B00002S003

RUBBER

1шт.

1-3

PH69B00003P1

CUTTING EDGE

Side

1шт.

1-4

PH69B00004P1

CUTTING EDGE

Side

1шт.

1-5

ZS13C16040

SCREW

6шт.

1-6

ZN13C16013

NUT

6шт.

1

PY61B00116F1

BUCKET

Assembly, 1-1 - 1-6, Start Serial: PS02-00108

1шт.

1-1

NSS

NOT SOLD SEPARAT

Bucket PY61B00123P1, Incl 1-1L - 1-1R

1шт.

1-1l

PY69B01003P1

CUTTING EDGE

Cutting

1шт.

1-1r

YJ61B01001P1

ADAPTER

3шт.

1-2

YJ69B00002F1

BUCKET TOOTH

Assembly, Incl 1-2A - 1-2C

3шт.

1-2a

YJ69B00002S001

BUCKET TOOTH

1шт.

1-2b

YJ69B00002S002

PIN

1шт.

1-2c

YJ69B00002S003

RUBBER

1шт.

1-3

PH69B00003P1

CUTTING EDGE

Side

1шт.

1-4

PH69B00004P1

CUTTING EDGE

Side

1шт.

1-5

ZS13C16040

SCREW

6шт.

1-6

ZN13C16013

NUT

6шт.
