Запчасти Case CX55BMSR (03-016[01]) - ARM ASSY 1.66M (ROTATION WITH THUMB BRACKET) (84) - BOOMS, DIPPERS & BUCKETS

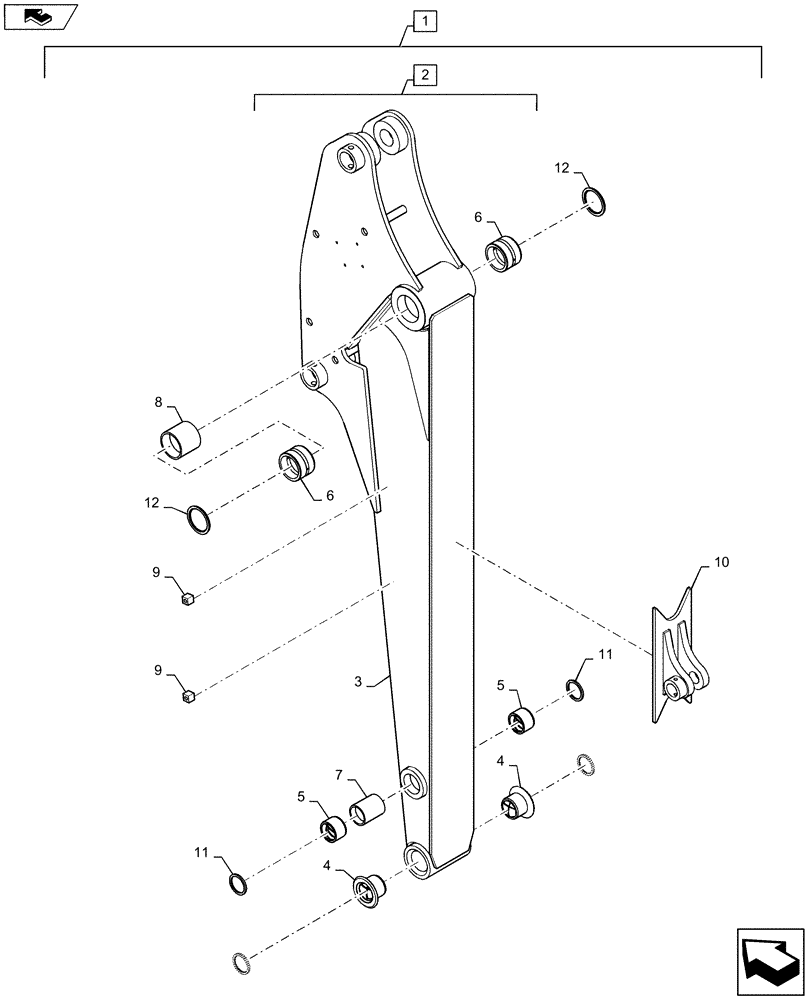

Схема запчастей Case CX55BMSR - (03-016[01]) - ARM ASSY 1.66M (ROTATION WITH THUMB BRACKET) (84) - BOOMS, DIPPERS & BUCKETS
8
5
6
6
11
4
9
10
1
5
12
4
2
7
9
12
home
11
3

Артикул

Название

Примечание

Количество

.

Arm Assy 1.66m (Nibbler & breaker with Thumb Bracket) PY12B00192F1, Start Serial: PS02-01418

1шт.

1

PY12B00193F1

ARM

Assembly, Incl 2 - 9

1шт.

2

PY12B00137F1

ARM

Assembly, Incl 3 -7

1шт.

3

NSS

NOT SOLD SEPARAT

Arm, PY12B00138P2

1шт.

4

PH12B01100P1

BUSHING,45mm ID x 55mm OD x 46.5mm W

2шт.

5

PY12B01079P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

6

PY12B01220P1

BUSHING

2шт.

7

PY12B01213P1

COLLAR,48.8mm ID x 54mm OD x 68mm L

1шт.

8

PY12B01221P1

COLLAR

1шт.

9

2416T23627D2

BLOCK

Tapped

4шт.

10

PY12B01383P1

BRACKET

Assembly

1шт.

11

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

4шт.

12

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

2шт.

Выбрано товаров: 13
