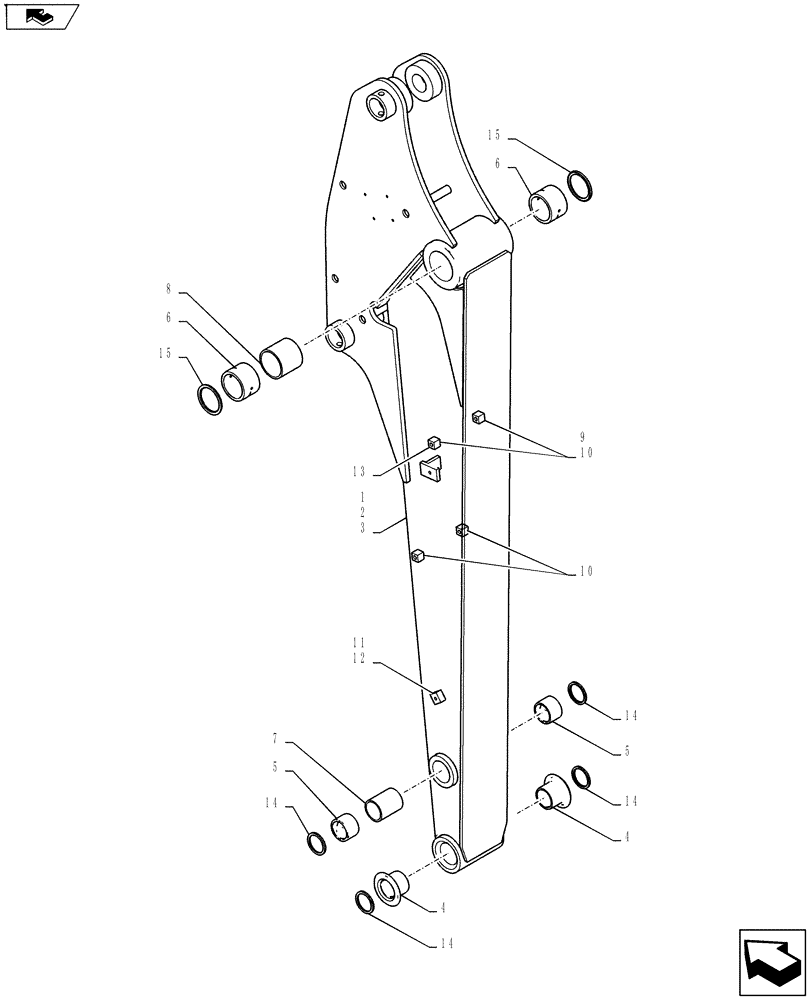

Запчасти Case CX55BMSR (03-016[00]) - ARM ASSY 1.66M (ROTARY NIBBLER & BREAKER) (84) - BOOMS, DIPPERS & BUCKETS

.

Arm Assy1.66M (Rotary Nibbler & Breaker) PY12B00143F1, Start Serial: PS02-00101

1шт.

1

PY12B00144F1

ARM

1шт.

2

PY12B00137F1

ARM

1шт.

3

NSS

NOT SOLD SEPARAT

Arm, PY12B00138P1, Serial Range: PS02-00101-PS02-00163

1шт.

3

NSS

NOT SOLD SEPARAT

Arm, PY12B00138P2, Start Serial: PS02-00164

1шт.

4

PH12B01100P1

BUSHING,45mm ID x 55mm OD x 46.5mm W

2шт.

5

PY12B01079P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

6

PY12B01220P1

BUSHING

2шт.

7

PY12B01213P1

COLLAR,48.8mm ID x 54mm OD x 68mm L

1шт.

8

PY12B01221P1

COLLAR

1шт.

9

NSS

NOT SOLD SEPARAT

Arm, PY12B00139P1

1шт.

10

2416T23627D2

BLOCK

Tapped

4шт.

11

NSS

NOT SOLD SEPARAT

Arm, PY12B00140P1

1шт.

12

2416T12874

BLOCK

Tapped

1шт.

13

PY12B01313P1

BRACKET

1шт.

14

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

Dust

4шт.

15

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

Dust

2шт.
