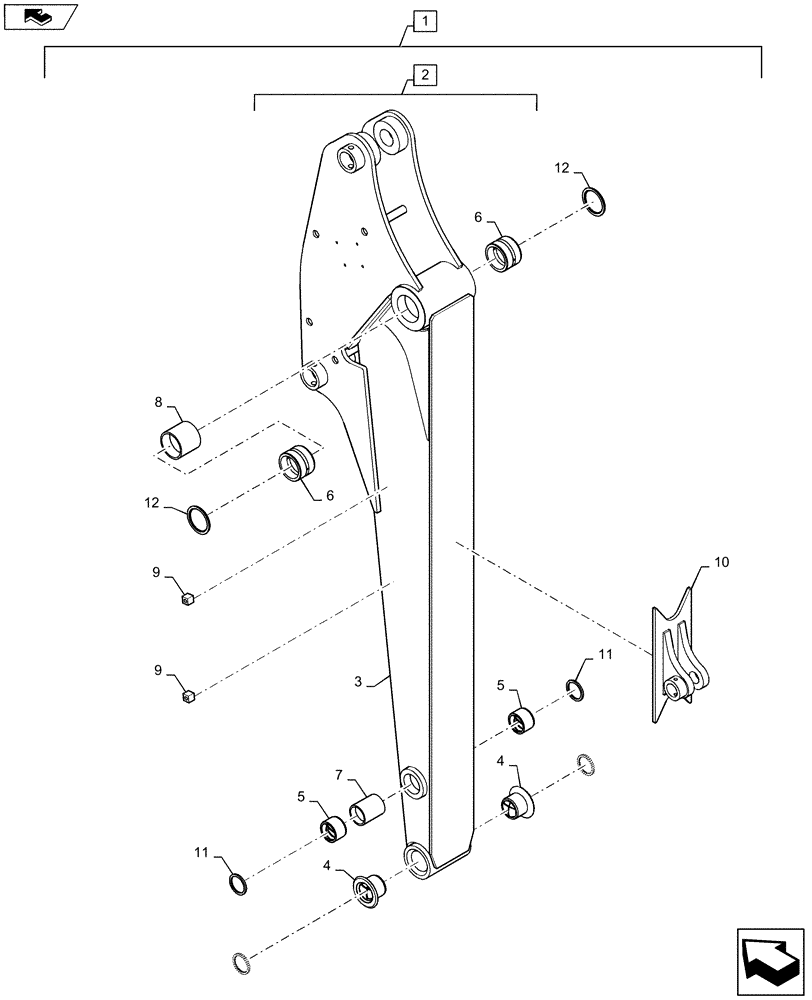

Запчасти Case CX55BMSR (03-015[01]) - ARM ASSY 1.66M (NIBBLER & BREAKER WITH THUMB BRACKET) (84) - BOOMS, DIPPERS & BUCKETS

.

Arm Assy 1.66m (Nibbler & breaker with Thumb Bracket) PY12B00189F1, Start Serial: PS02-01346

1шт.

1

PY12B00190F1

ARM

Assembly, Incl 2 - 9

1шт.

2

PY12B00137F1

ARM

Arm, Incl 3 -7

1шт.

3

NSS

NOT SOLD SEPARAT

Arm, PY12B00138P2

1шт.

4

PH12B01100P1

BUSHING,45mm ID x 55mm OD x 46.5mm W

2шт.

5

PY12B01079P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

6

PY12B01220P1

BUSHING

2шт.

7

PY12B01213P1

COLLAR,48.8mm ID x 54mm OD x 68mm L

1шт.

8

PY12B01221P1

COLLAR

1шт.

9

2416T23627D2

BLOCK

Tapped

4шт.

10

PY12B01383P1

BRACKET

Assembly

1шт.

11

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

4шт.

12

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

2шт.
