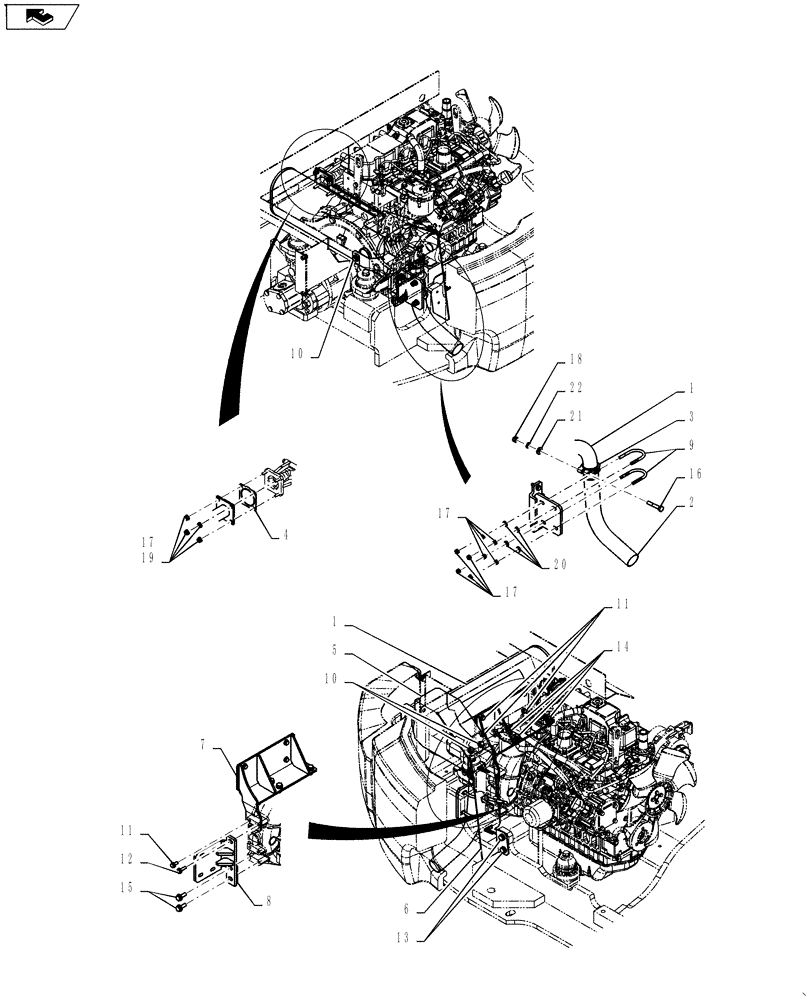

Запчасти Case CX55BMSR (01-011[00]) - MUFFLER ASSY (10) - ENGINE

.

Muffler Assembly PY12P00008F1

1шт.

1

PY12P00009P1

MUFFLER

1шт.

2

PY12P01074P1

TUBE

Exhaust

1шт.

3

PY12P01075P1

CLAMP

1шт.

4

PH12P01056P1

GASKET

1шт.

5

PY12P01076P1

COVER

1шт.

6

PY12P01078P1

COVER

1шт.

7

PH12P01077P1

BRACKET

1шт.

8

PH12P01097P1

BRACKET

1шт.

9

2420T2948D4

BOLT

U

2шт.

10

PA21C01133P1

BOLT

Sems

3шт.

11

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

5шт.

12

ZM73C08030

BOLT,M8x30mm - Course Thread

Sems

1шт.

13

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

14

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

15

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

2шт.

16

ZS18C10060

SCREW,Hex, M10 x 60mm

Cap

1шт.

17

ZN18C08007

NUT

12шт.

18

ZN18C10008

NUT

1шт.

19

ZW16P08000

WASHER

4шт.

20

ZW16H08000

WASHER

4шт.

21

ZW16H10000

WASHER

1шт.

22

ZW26X10000

LOCK WASHER

1шт.
