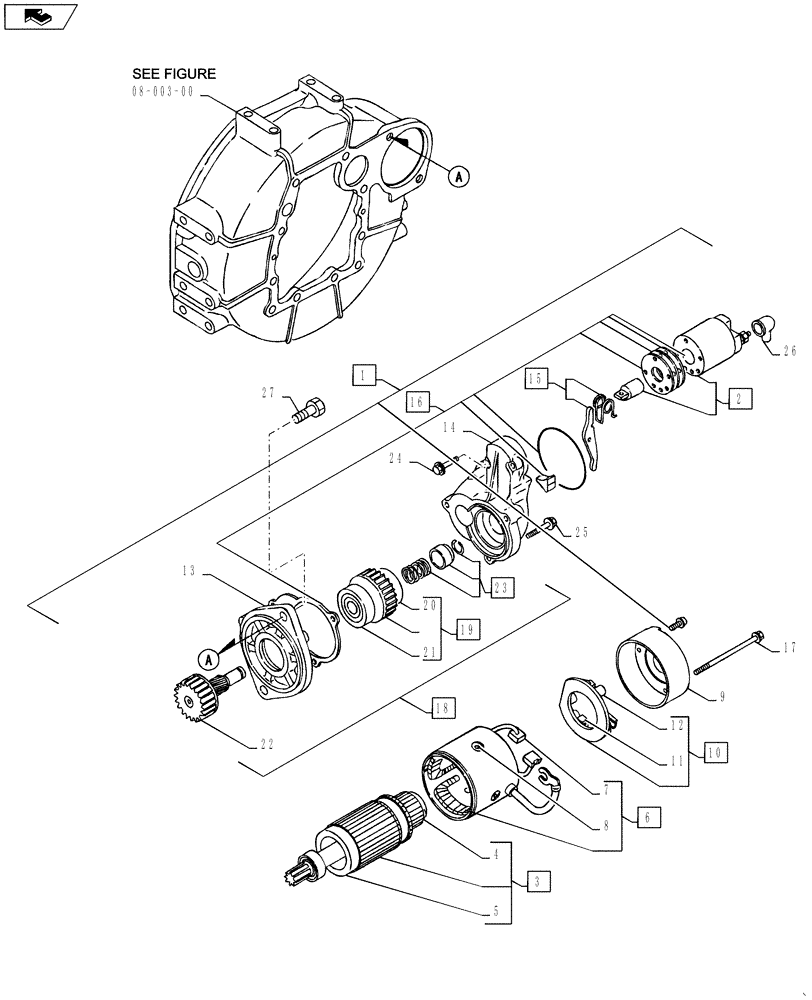

Запчасти Case CX55BMSR (08-014[00]) - STARTING MOTOR (55) - ELECTRICAL SYSTEMS

1

VV12913677011

STARTER MOTOR

Includes Ref. 2-26

1шт.

2

VV12913677310

SHAFT

Pinion

1шт.

3

VV12990077400

ARMATURE

Includes Ref. 4-5

1шт.

4

VVX2130350900

BALL BEARING

1шт.

5

VVX2114255110

BALL BEARING

1шт.

6

VV12990077440

COIL ASSY.

Field, Includes Ref. 7-8

1шт.

7

VV12990077450

COMMUTATOR BRUSH

2шт.

8

VV17100877450

SCREW

Pole Core Set

4шт.

9

VV12990077460

REAR COVER

Rear

1шт.

10

VV12990077480

HOLDER

Brash, Includes Ref. 11-12

1шт.

11

VV12990077450

COMMUTATOR BRUSH

2шт.

12

VV12940077490

SPRING

Brush

4шт.

13

VV17100877510

TRANSMISSION HOUSING

Gear

1шт.

14

VV12913677520

HOUSING

1шт.

15

VV17100877540

LEVER

Shift

1шт.

16

VV12940077571

COVER

Dust

1шт.

17

VV12990077640

BOLT

Throught

2шт.

18

VV17100877650

PINION

Includes Ref. 19-23

1шт.

19

VVX2114555500

CLUTCH ASSEMBLY

Includes Ref. 20-21

1шт.

20

VVX2114955020

BALL BEARING

1шт.

21

VVX2240410100

BALL BEARING

1шт.

22

VV17100877660

SHAFT

Pinion

1шт.

23

VV17100877670

STOP

Pinion

1шт.

24

VV26106060322

BOLT,M6 x 32mm

M 6X 32 Plated

2шт.

25

VV26106060402

BOLT,M6 x 40mm

M 6X 40 Plated

3шт.

26

VV17100877750

PROTECTIVE COVER

M Terminal

1шт.

27

VV26116120252

BOLT

M 12X 25 Plated

2шт.
