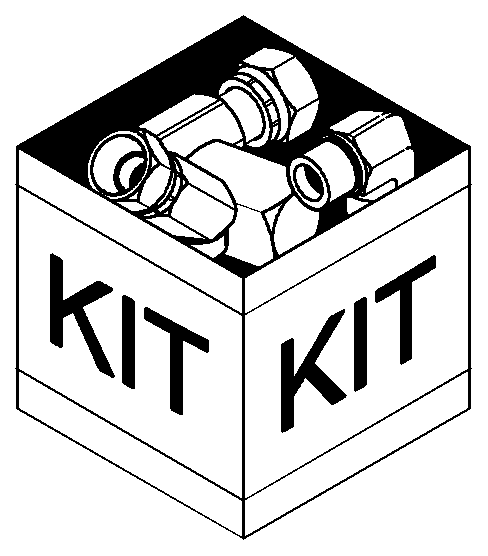

Запчасти Case CX55BMSR (05.100.04) - ELECTRICAL EQUIPMENT (55) - ELECTRICAL SYSTEMS

.

Air Conditioner (For Cab)

1шт.

d-1

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

d-2

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

d-3

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

d-4

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

d-5

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

d-12

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

d-14

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

d-18

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

d-19

YN02D01001P1

DIODE,3 Amp, 400V

1шт.

e-1

PY73E00002F1

FUSE

Assy

1шт.

e-2

VV11962677210

ALTERNATOR,12V, 55 Amp

1шт.

e-3

PY53S00002P1

HORN

1шт.

e-4

PH73S00001P1

FUSE,45 Amp

(Used for Starter Fusible Link)

1шт.

e-6

PH59S00005F1

GAUGE ASSY.

1шт.

e-7

PF81S01001P1

SOCKET

1шт.

e-8

VV12900877800

PLUG

1шт.

e-10

YN54S00045P2

RADIO

1шт.

e-11

YJ53S01001D3

BUZZER,DC12V, 15mA

1шт.

e-13

B27F72W

WET BATTERY

Case - USA

1шт.

e-13

CC27F72W

WET BATTERY

Case - Canada

1шт.

e-13

F565DSW

WET BATTERY,12V, 700CCA

NH

1шт.

e-14

PA24S00002P3

RELAY,DC12V

(Used for Sequence Box)

1шт.

e-18

PH91V00004F1

AIRCOND. COMPRESSOR

1шт.

e-20

PW53S00002F1

REVERSE ALARM,DC12V, 0.3 Amp

1шт.

e-26

PA58S00001P1

HOURMETER

1шт.

e-27

PW20M01071F1

RECEIVER-DRYER,Air Conditioner

1шт.

e-41

YT54S00006P1

SPEAKER

1шт.

e-42

YT54S00006P1

SPEAKER

1шт.

l-1

PW80S00007P1

LIGHT

1шт.

l-2

PM80S00008F1

LIGHT

1шт.

l-5

PW80S00003F1

LIGHT ASSY.

1шт.

m-1

VV12913677011

STARTER MOTOR

1шт.

m-2

PM76S00001F1

WIPER MOTOR

1шт.

m-3

PW54C00001P1

TANK

1шт.

m-4

PY20S00003F1

GOVERNOR

1шт.

m-6

PW22P00001P1

FUEL PUMP

1шт.

r-1

PH24S00001P1

RELAY,12V, 70amp

Battery

1шт.

r-2

PX24S00001P1

RELAY

Safety

1шт.

r-3

PA24E01001P1

RELAY,12V - 20amp

Deceleration

1шт.

r-6

PH25S00002P1

TIMER

Unit

1шт.

r-7

PX24S00003P1

RELAY

Engine Stop

1шт.

r-8

PA24E01001P1

RELAY,12V - 20amp

Charge Indicator

1шт.

r-9

PA24E01001P1

RELAY,12V - 20amp

Cab/Canopy Working Light

1шт.

r-31

PA24E01001P1

RELAY,12V - 20amp

Horn

1шт.

r-34

PM24S00001P1

RELAY

Neutral Start

1шт.

se-1

PX52S00006F1

SENSOR

Fuel

1шт.

se-2

PA24S00003P1

SENSOR,50-120 Degree C

Engine Temp Gauge

1шт.

sv-1

PY35V00008F1

SOLENOID VALVE

Lever Lock

1шт.

sv-2

PY35V00008F1

SOLENOID VALVE

2-speed Select

1шт.

sv-3

VV11923377932

SOLENOID

Engine Stop

1шт.

sv-5

YJ35V00004F2

SOLENOID VALVE

Power Shift (Cooler Spec)

1шт.

psv-d

PW35V00002F1

SOLENOID VALVE

Nibbler Open Proportional

1шт.

psv-e

PW35V00002F1

SOLENOID VALVE

Nibbler Close Proprtional

1шт.

psv-f

PW35V00002F1

SOLENOID VALVE

Revolution Left (A1)

1шт.

psv-g

PW35V00002F1

SOLENOID VALVE

Revolution Right (A2)

1шт.

sw-1

PW50S00005S001

SWITCH

Key

1шт.

sw-2

PV24E01001P2

SWITCH

Working Light

1шт.

sw-3

YN03M01286S002

SWITCH

2-speed Select

1шт.

sw-4

PY50S00004P2

SWITCH

Wiper Washer (for Cab)

1шт.

sw-5

PM50S00006P1

THERMOSTATIC SWITCH,On - 110 Degrees C, 230 Degrees F

Engine Coolent Temp Warning

1шт.

sw-6

VV11425039450

PRESSURE SWITCH,DC6V, 12V, 24V, 49 +/- 1 kPa (7.1 +/- 1.4 psi), PT 1/8"

Engine Oil Pressure

1шт.

sw-7

YN50E01001P1

SWITCH ASSY

Horn

1шт.

sw-9

PA50S00001P1

LIMIT SWITCH

Lever Lock

1шт.

sw-11

PM50S00005P1

SWITCH

Deceleration

1шт.

sw-14

PW11P00010S004

INDICATOR

Air Filter Restriction

1шт.

sw-23

2479U1190F16

SWITCH

Travel Alarm Select

1шт.

sw-24

GB50S00049F2

SWITCH

Travel Right (FWD) Pressure

1шт.

sw-25

GB50S00049F2

SWITCH

Travel Right (Reverse) Pressure

1шт.

sw-26

GB50S00049F2

SWITCH

Travel Left (FWD) Pressure

1шт.

sw-27

GB50S00049F2

SWITCH

Travel Left (Reverse) Pressure

1шт.

sw-35

PW03M01958F1

HANDLE

Nibbler Open-Close (Right)

1шт.

sw-37

PW03M01959F1

HANDLE

(A1, A2) Revolution (Left)

1шт.

sw-39

72117480

PRESSURE SWITCH

Overload Pressure

1шт.

sw-40

2479U1190F33

SWITCH

Overload

1шт.

h-1

PY14E01015P2

WIRE HARNESS

Main, Upper Frame

1шт.

h-2

PY14E01014P2

WIRE HARNESS

Right Deck, Upper Frame

1шт.

h-3

PY13E01065P2

CABLE

Starter

1шт.

h-4

PY13E01049P1

CABLE

Battery Ground

1шт.

h-5

PW50E01002P1

HARNESS

Key Switch

1шт.

h-6

PY14E01016P1

WIRE HARNESS

Boom Work Light Extension

1шт.

h-7

PY16E01009P1

WIRE HARNESS

Engine

1шт.

h-8

PW13E01043D1

CABLE,320mm L

Engine Ground

1шт.

h-9

PY11E01024P2

WIRE HARNESS

A/C Right Deck

1шт.

h-10

PY15E01004P1

WIRE HARNESS

Boom Work Light

1шт.

h-11

Cab Work Light

1шт.

h-12

PY11E01026P2

WIRE HARNESS

Air Filter

1шт.

h-13

PY14E01013P1

WIRE HARNESS

Proportional N&B (Option)

1шт.
