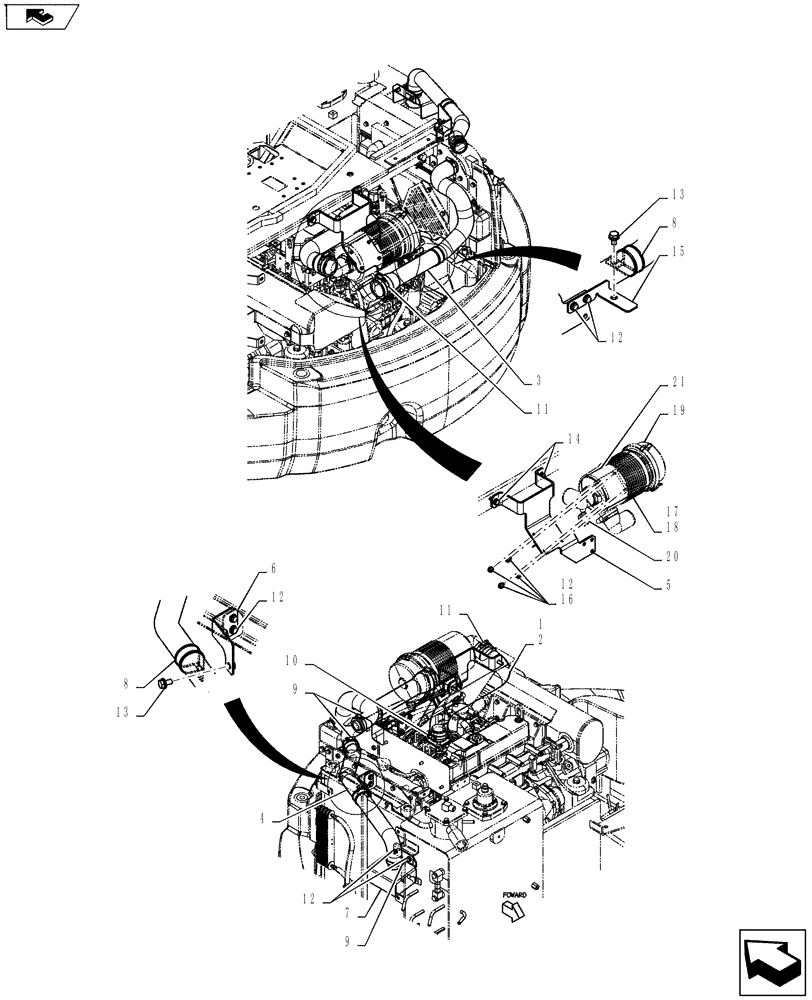

Запчасти Case CX55BMSR (01-010[00]) - AIR CLEANER ASSY (10) - ENGINE

.

Air Cleaner Assembly Install PY11P00007F1

1шт.

1

NSS

NOT SOLD SEPARAT

Air Cleaner Assy PY11P00008F1, Incl 1 - 16

1шт.

2

PH11P01035P1

HOSE

Air

1шт.

3

PY11P01040P1

AIR HOSE

Air

1шт.

4

PY11P01021P1

AIR HOSE

Air

1шт.

5

PY11P01044P1

BRACKET

1шт.

6

PY11P01024P1

BRACKET

1шт.

7

PY11P01046P1

TUBE

Intake, Air

1шт.

8

YW05P01025P1

CLIP

2шт.

9

ZC16X05000

CLIP

3шт.

10

ZC16X05800

CLIP

1шт.

11

ZC16X06700

CLIP,58mm - 76mm

2шт.

12

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

10шт.

13

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

14

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

2шт.

15

PY11P01038P1

BRACKET

1шт.

16

ZW16H08000

WASHER

4шт.

17

PH11P00014F1

AIR CLEANER

1шт.

18

PH11P00014S001

BODY

Assembly, Incl 19 - 21 & Elbows

1шт.

19

PH11P00011S002

COVER ASSY

1шт.

20

PW11P00010S004

INDICATOR

Air Filter Restriction

1шт.

21

PH11P00011S005

AIR FILTER

Air Cleaner, Outer

1шт.

21

PH11P01039P1

ELEMENT

Air Cleaner, Inner

1шт.
