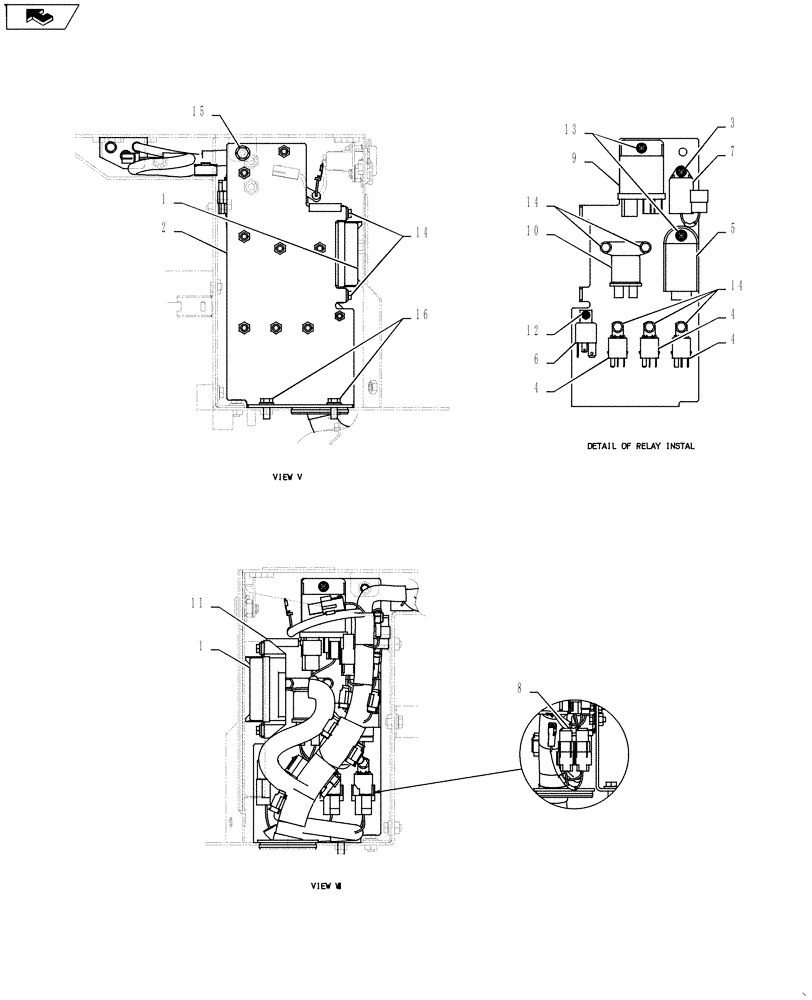

Запчасти Case CX55BMSR (01-078[04]) - ELECTRICAL ASSY, UPPER (55) - ELECTRICAL SYSTEMS

.

Upper Electrical Install PY03E00003F1, Start Serial: PS02-00101

1шт.

1

PY73E00002F1

FUSE

Assy

1шт.

2

PY13E01071P1

BRACKET

1шт.

3

ZM61C06020

BOLT

Sems

1шт.

4

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

3шт.

5

PA24S00002P3

RELAY,DC12V

(Sequence Box), Serial Range: PS02-00101-PS02-01964

1шт.

5

PA24S00002P4

RELAY,12V, 0.12W

(Sequence Box), Start Serial: PS02-01965

1шт.

6

PH24S00001P1

RELAY,12V, 70amp

Battery

1шт.

7

PH25S00002P1

TIMER

1шт.

8

PM24S00001P1

RELAY

Neutral Start

1шт.

9

PX24S00001P1

RELAY

Safety

1шт.

10

PX24S00003P1

RELAY

(Used for Engine Stop, Glow)

1шт.

11

YT02C01515D6

TRIM

1шт.

12

ZM61C05016

BOLT

Sems

1шт.

13

ZM61C06025

BOLT

Sems

2шт.

14

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

7шт.

15

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

6шт.

16

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

3шт.
