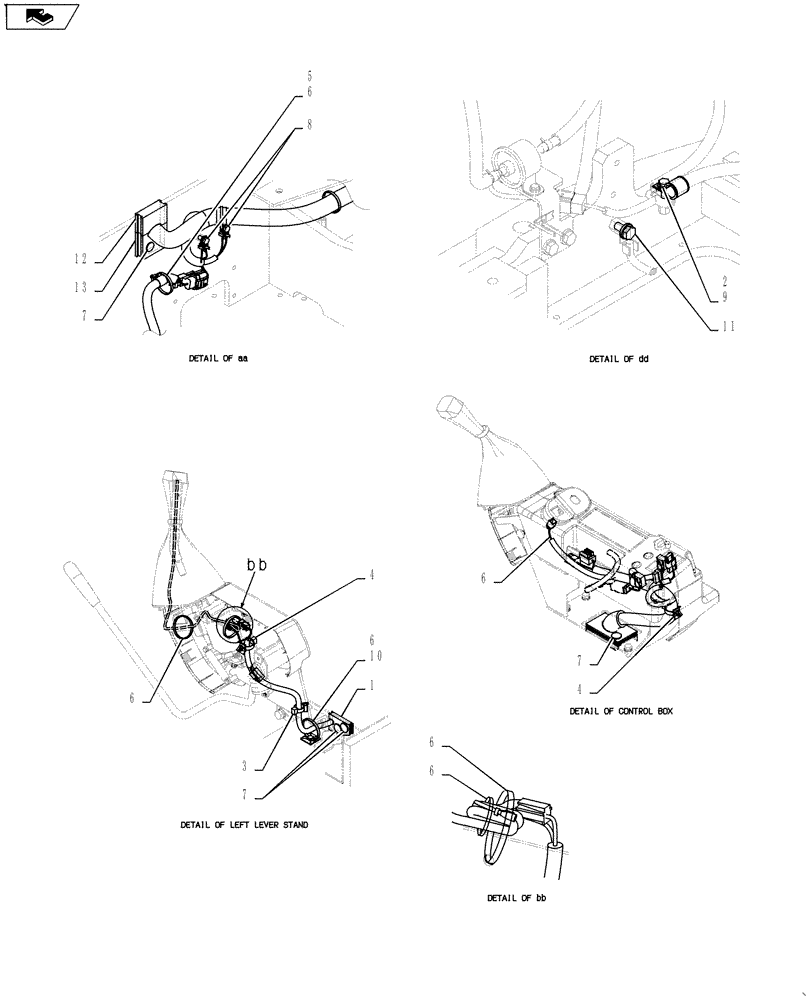

Запчасти Case CX55BMSR (01-078[02]) - ELECTRICAL ASSY, UPPER (55) - ELECTRICAL SYSTEMS

.

Upper Electrical Install PY03E00003F1, Start Serial: PS02-00101

1шт.

1

PY13E01069P1

GROMMET

1шт.

2

EW02E01015D8

CLIP

3шт.

3

YN03E01001D4

CLIP,33mm L

1шт.

4

YN03E01001D5

CLIP

2шт.

5

YN13E01375P1

CLIP,M8 x 8.20mm Shank

11шт.

6

PY01P01043D3

CABLE TIE,188mm L

35шт.

7

YN64H01392D1

CAP

, Serial Range: PS02-00101-PS02-00529

4шт.

7

PV02B01073D2

CAP

, Start Serial: PS02-00530

2шт.

8

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

6шт.

9

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

3шт.

10

YT11E01043P1

SPRING

1шт.

11

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.

12

PY13E01082P1

GROMMET

1шт.

13

PY13E01081P1

GROMMET

1шт.
