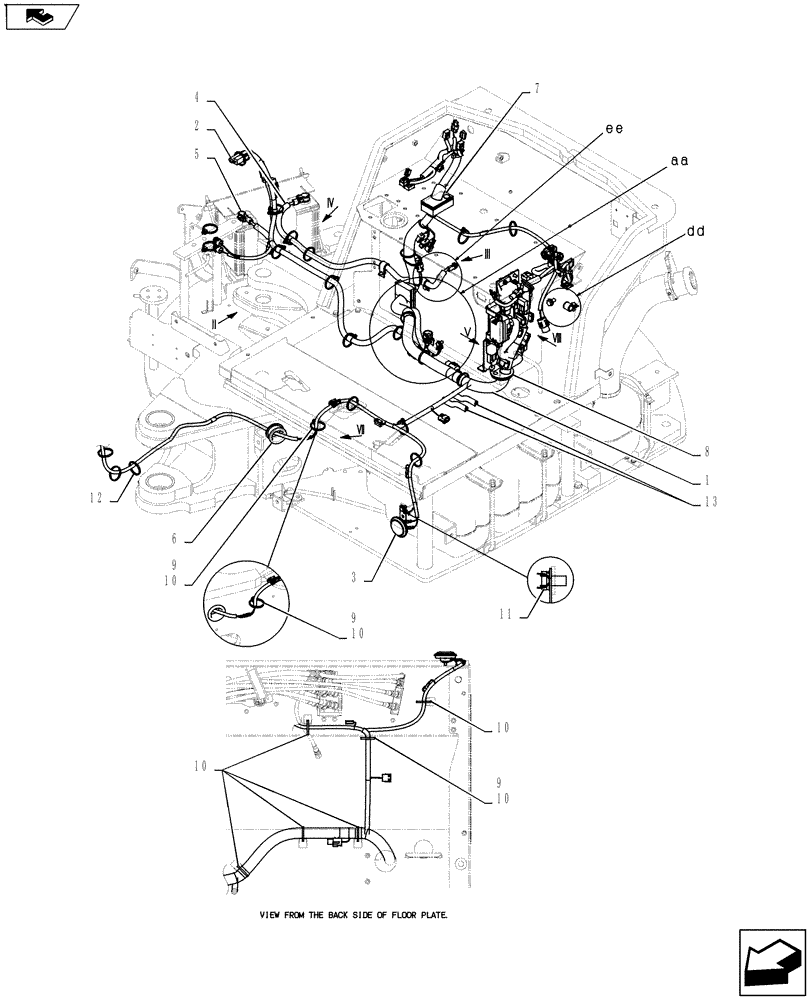

Запчасти Case CX55BMSR (01-078[01]) - ELECTRICAL ASSY, UPPER (55) - ELECTRICAL SYSTEMS

.

Upper Electrical Install PY03E00003F1, Start Serial: PS02-00101

1шт.

.

YN02D01001P1

DIODE,3 Amp, 400V

Not Shown (Black)

1шт.

.

PH73S00001P1

FUSE,45 Amp

Not Shown - 45A Fusible Link

1шт.

.

PF81S01001P1

SOCKET

Not Shown - Aux Power Socket

1шт.

1

PY14E01015P2

WIRE HARNESS

, Serial Range: PS02-00101-PS02-00147

1шт.

1

PY14E01015P3

WIRE HARNESS

, Start Serial: PS02-00148

1шт.

2

PY14E01014P2

WIRE HARNESS

1шт.

3

PY53S00002P1

HORN

1шт.

4

PY13E01065P2

CABLE

, Serial Range: PS02-00101-PS02-00519

1шт.

4

PY13E01065P3

CABLE

, Start Serial: PS02-00520

1шт.

5

PY13E01049P1

CABLE

1шт.

6

PH13E01071P1

GROMMET

1шт.

7

PY13E01073P1

GROMMET

1шт.

8

PY13E01078P1

GROMMET

1шт.

9

YN13E01375P1

CLIP,M8 x 8.20mm Shank

11шт.

10

PY01P01043D3

CABLE TIE,188mm L

35шт.

11

ZM11C08016

BOLT

Sems

1шт.

12

PY14E01016P1

WIRE HARNESS

1шт.

13

PY52F01022D6

GASKET

Trim

2шт.
