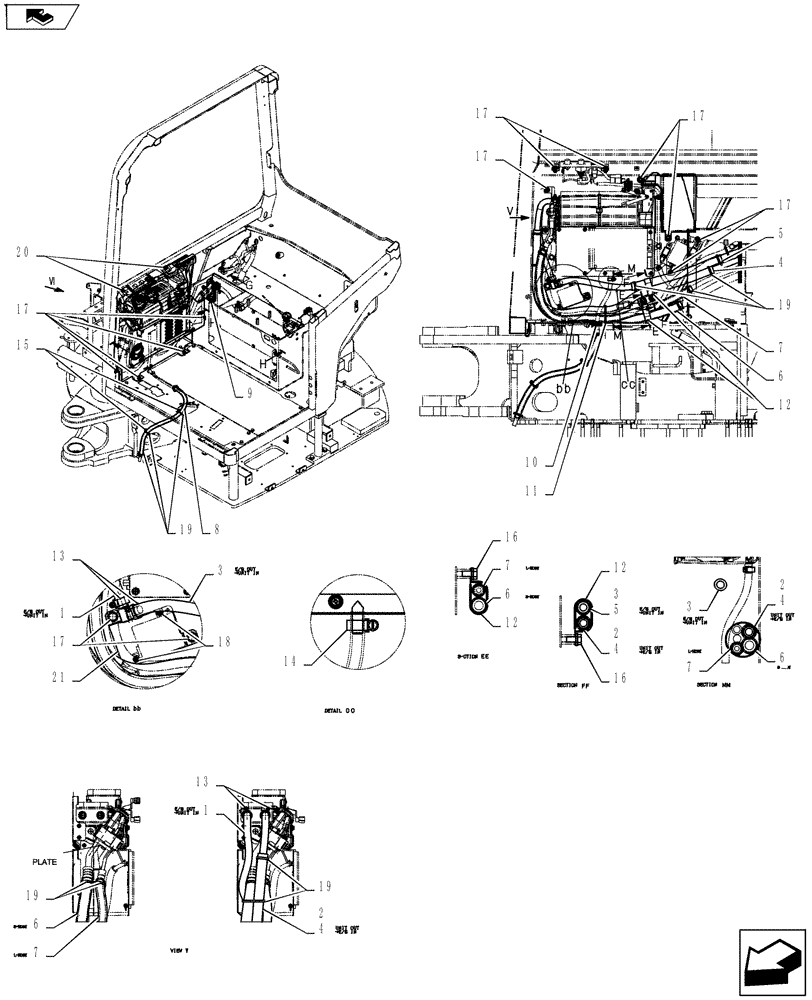

Запчасти Case CX55BMSR (01-080[03]) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

PY20M00008F1

Air

1шт.

1

PY20M01205P1

HOSE

1шт.

2

PY20M01210P1

HOSE

1шт.

3

HX11W08140DX

HOSE

1шт.

4

YN20M01046DV

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 950.00mm

1шт.

5

YN20M01046D5

PROTECTIVE SLEEVE,22.10mm ID x 27.00mm OD x 350.00mm

1шт.

6

YN20M01094D9

TUBE,25mm ID x 30mm OD x 750mm Length

1шт.

7

2418Z1333D20

PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 800mm Length

1шт.

8

PU13E01010DM

TUBE

1шт.

9

PY20M01185P1

GROMMET

1шт.

10

PB13E01003P1

GROMMET

1шт.

11

PY01P01043D4

CABLE TIE,4.80mm W x 251mm L

2шт.

12

2432R226D13

CLIP

2шт.

13

ZC16X02000

CLIP

6шт.

14

ZC16X01400

CLIP

1шт.

15

YN13E01375P1

CLIP,M8 x 8.20mm Shank

3шт.

16

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

4шт.

17

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

28шт.

18

ZM61C05012

BOLT

Sems

2шт.

19

PY01P01043D3

CABLE TIE,188mm L

26шт.

20

PY20M01245P1

CLIP

2шт.

21

PY20M01225P1

BRACKET

1шт.
