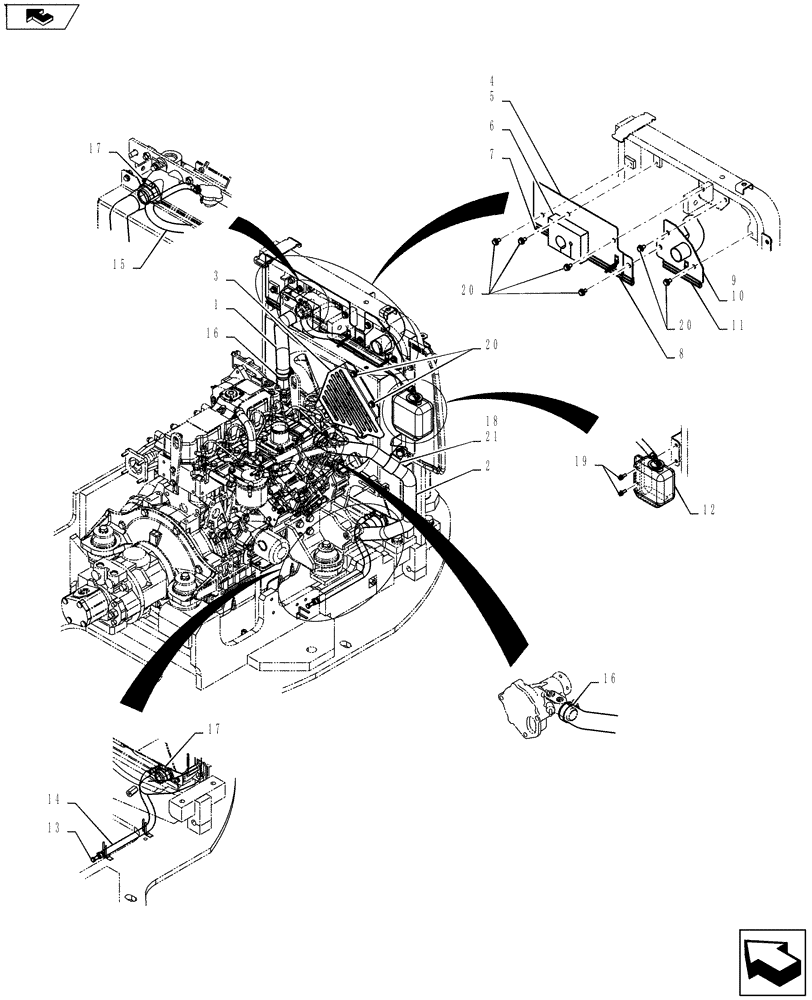

Запчасти Case CX55BMSR (01-008[00]) - RADIATOR GROUP (COOLER) (10) - ENGINE

.

Radiator Group (Cooler) PY05P00018F1

1шт.

1

PY05P01099P1

HOSE

Radiator

1шт.

2

PY05P01100P1

HOSE

Radiator

1шт.

3

PY05P01217P1

GUARD

1шт.

4

PY05P01172F1

PLATE

Assembly, Incl 5 - 8

1шт.

5

PY05P01173P1

PLATE

1шт.

6

PY05P01193P1

INSULATION

1шт.

7

PM21C01152DR

WEATHERSTRIP

1шт.

8

2427P1836D36

WEATHERSEAL STRIP

1шт.

9

PY05P01175F1

BRACKET

Assembly, Incl 10 - 11

1шт.

10

PY05P01209P1

BRACKET

1шт.

11

YT21C01039DN

WEATHERSTRIP

1шт.

12

PU01P01024F1

RESERVOIR

Tank Assy., Water, Sub.

1шт.

13

PW05P01117P1

PLUG

1шт.

14

HX81X13036DX

TUBE

1шт.

15

HX81X13046DX

TUBE

1шт.

16

ZC16X03300

FASTENER

Clip

2шт.

17

ZC16X03900

CLIP

2шт.

18

ZC46X38014

CLIP

1шт.

19

ZM61C06020

BOLT

Sems

2шт.

20

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

8шт.

21

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.
