(02-010[01]) - LOW GROUP (WITH STEEL TRACK)

Запчасти Case CX55BMSR (02-010[01]) - LOW GROUP (WITH STEEL TRACK) (48) - TRACKS & TRACK SUSPENSION

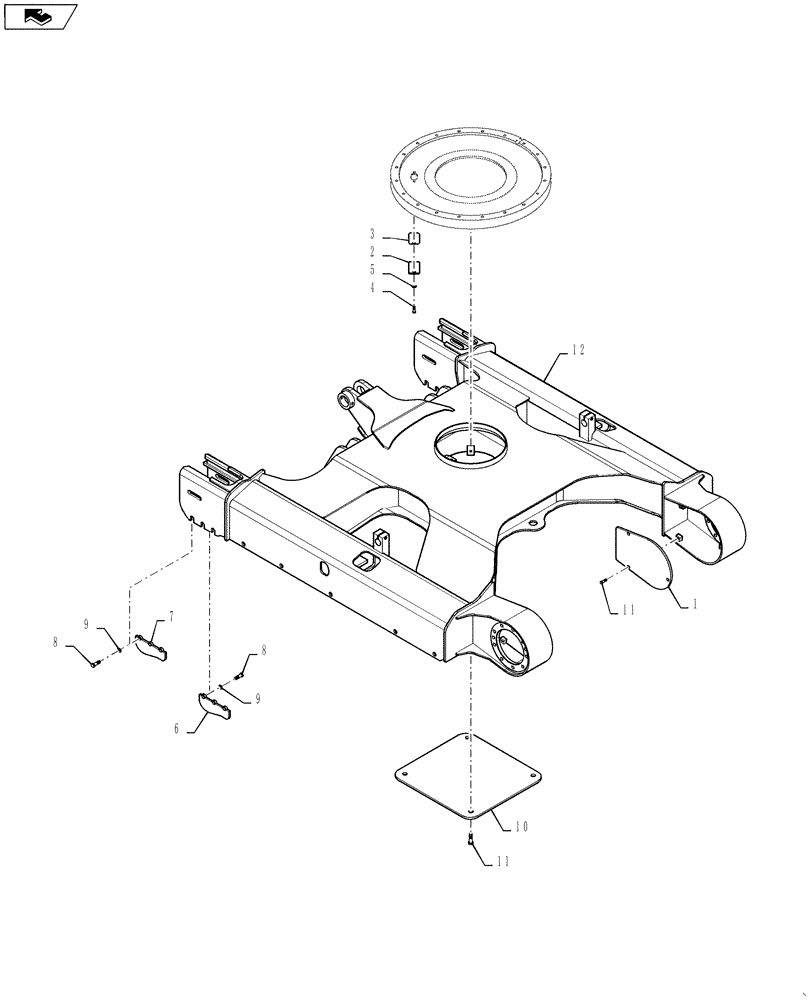

Схема запчастей Case CX55BMSR - (02-010[01]) - LOW GROUP (WITH STEEL TRACK) (48) - TRACKS & TRACK SUSPENSION
11
9
11
12
1
8
4
2
10
9
3
8
home
6
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Low Group for Steel Track PY01F00018F1

1шт.

1

PY01F01023P1

COVER

2шт.

2

2422T556

PLATE

1шт.

3

2418T12274

PACKING

1шт.

4

ZS18C10014

SCREW,Hex, M10 x 14mm

M10x14

2шт.

5

ZW26X10000

LOCK WASHER

2шт.

6

PY01F01008P1

PLATE

Used with Steel Track Only (Remove for rubber track)

6шт.

7

PY01F01001P1

PLATE

Used with Steel Track Only (Remove for rubber track)

2шт.

8

ZS18C16040

SCREW,Hex, M16 x 40mm

Used with Steel Track Only (Remove for rubber track)

12шт.

9

ZW16H16000

WASHER

Used with Steel Track Only (Remove for rubber track)

12шт.

10

PY01F01022P1

COVER

1шт.

11

ZM73C10020

BOLT,M10x20mm - Course Thread

M10x20

10шт.

12

PY02F00041P1

FRAME

Frame, low

1шт.
