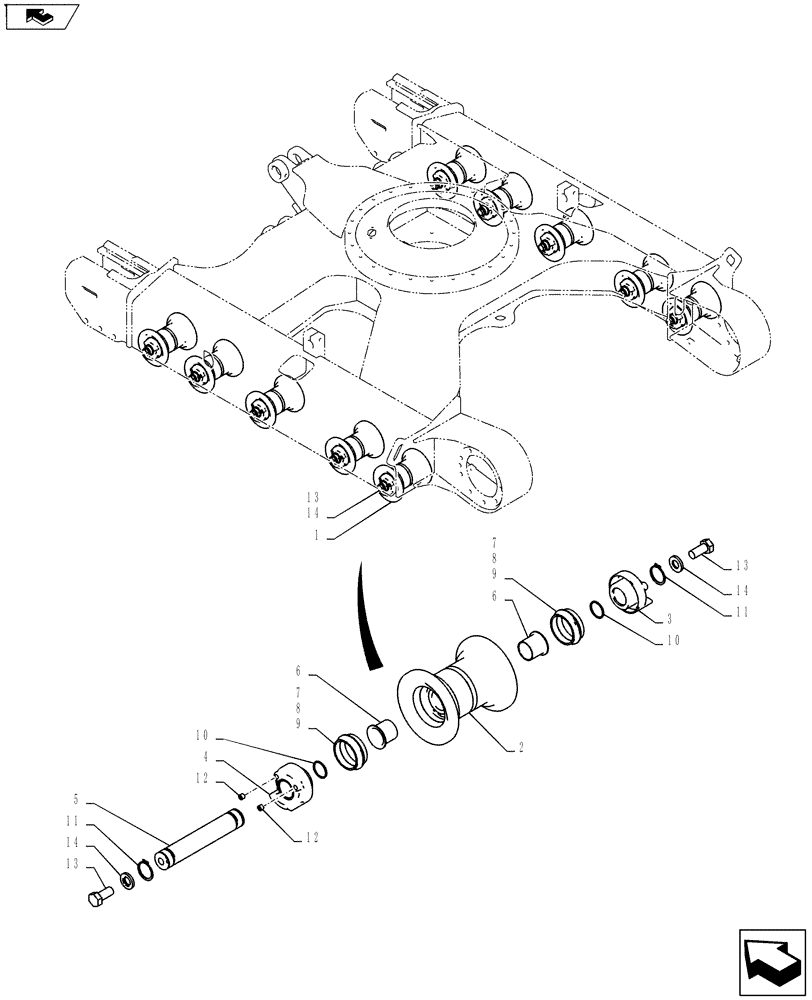

Запчасти Case CX55BMSR (02-009[00]) - ROLLER ASSY, TRACK (48) - TRACKS & TRACK SUSPENSION

.

Track Roller Install PY64D00011F1, Serial Range: PS02-00101-PS02-00147

1шт.

1

PY64D00012F1

TRACK ROLLER

Assembly, Incl 2 - 12

10шт.

2

PH64D01011P1

ROLLER

1шт.

3

NSS

NOT SOLD SEPARAT

Collar

1шт.

4

NSS

NOT SOLD SEPARAT

Collar

1шт.

5

PH64D01013P1

SHAFT

1шт.

6

2405T1680

BUSHING,35.1mm ID x 39mm OD x 36.95mm L

2шт.

7

2445R362F1

SEAL,56mm ID x 70mm OD x 25mm Thk

Floating, Incl 8 - 9

2шт.

8

NSS

NOT SOLD SEPARAT

Seal

2шт.

9

NSS

NOT SOLD SEPARAT

O'ring

2шт.

10

ZD11G03000

O-RING,29.40mm ID x 35.60mm OD x 3.10mm

2шт.

11

ZR16X03500

RING

Snap

2шт.

12

ZE82T02000

PLUG

2шт.

13

ZS18C16035

SCREW,Hex, M16 x 35mm

Cap

20шт.

14

ZW16H16000

WASHER

20шт.
