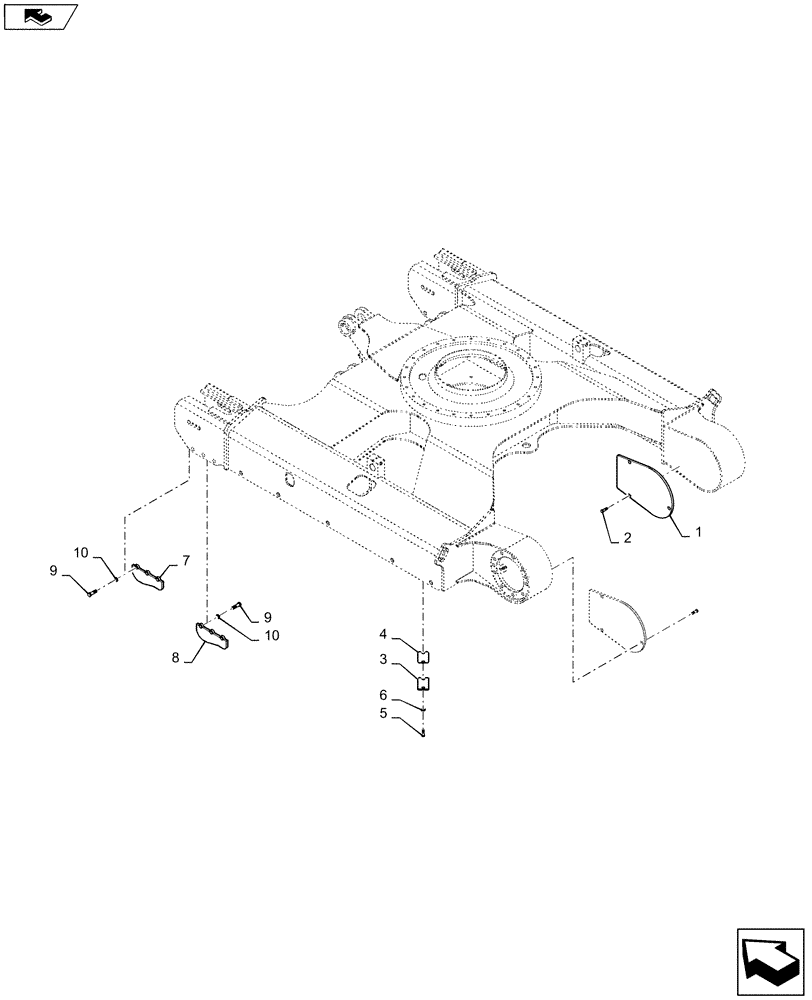

Запчасти Case CX55BMSR (02-010[02]) - LOW GROUP (39) - FRAMES AND BALLASTING

.

Low Group PY01F000020F1, Start Serial: PS02-00314

1шт.

1

PY01F01023P1

COVER

1шт.

2

ZM73C10020

BOLT,M10x20mm - Course Thread

1шт.

3

2422T556

PLATE

1шт.

4

2418T12274

PACKING

3шт.

5

ZS18C10014

SCREW,Hex, M10 x 14mm

1шт.

6

ZW26X10000

LOCK WASHER

1шт.

7

PY01F01008P1

PLATE

, Serial Range: PS02-00314-PS02-01478

3шт.

7

PY01F01025P1

PLATE

Assembly, Start Serial: PS02-01479

1шт.

8

PY01F01001P1

PLATE

, Serial Range: PS02-00314-PS02-01478

2шт.

8

PY01F01027P1

PLATE

Assembly, Start Serial: PS02-01479

1шт.

9

ZS18C16045

SCREW,Hex, M16 x 45mm

1шт.

10

ZW16H16000

WASHER

1шт.
