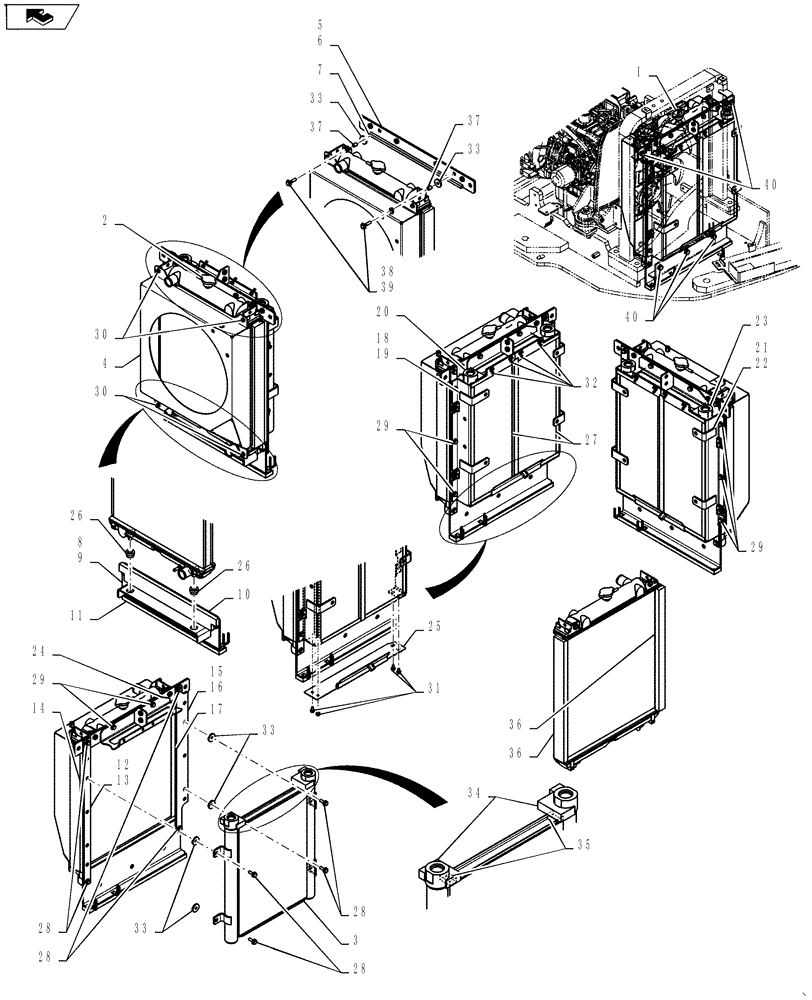

Запчасти Case CX55BMSR (01-007[01]) - RADIATOR INSTALL (10) - ENGINE

0

Radiator Install PY05P00020F1

1шт.

1

PY05P00022F1

RADIATOR

Assembly, Incl 2 - 39

1шт.

2

PY05P00019F1

RADIATOR

1шт.

3

PY53V00004P1

OIL COOLER

Oil

1шт.

4

PY05P01103P1

SHROUD

1шт.

5

PY05P01106F1

Bracket Assembly, Incl 6 - 7

1шт.

6

PY05P01107P1

BRACKET

1шт.

7

PH05P01280D1

RUBBER

1шт.

8

PY05P01109F1

Bracket Assembly, Incl 9 - 11

1шт.

9

PY05P01110P1

BRACKET

1шт.

10

PY05P01114P1

RUBBER INSULATOR

1шт.

11

PY05P01115P1

RUBBER INSULATOR

1шт.

12

PY05P01164F1

Bracket Assembly, Incl 13 - 14

1шт.

13

PY05P01117P1

BRACKET

1шт.

14

PY05P01116P1

RUBBER INSULATOR

1шт.

15

PY05P01165F1

Bracket Assembly, Incl 16 - 17

1шт.

16

PY05P01119P1

BRACKET

1шт.

17

PY05P01211P1

RUBBER INSULATOR

1шт.

18

PY05P01121F1

Bracket Assembly, Incl 19 - 20

1шт.

19

PY05P01122P1

BRACKET

1шт.

20

PY05P01156P1

INSULATION

1шт.

21

PY05P01126F1

Bracket Assembly, Incl 22 - 23

1шт.

22

PY05P01127P1

BRACKET

1шт.

23

PY05P01156P1

INSULATION

1шт.

24

PY05P01133P1

BRACKET

1шт.

25

PY05P01207P1

COVER

1шт.

26

PY05P01138P1

RUBBER INSULATOR

2шт.

27

PY05P01212P1

NET

Wire

2шт.

28

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

8шт.

29

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

8шт.

30

ZM73C06020

BOLT,M6x20mm - Course Thread

Sems

4шт.

31

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

4шт.

32

2420R585D3

BOLT,Wing, M6 x 12mm

4шт.

33

PM02C01425P1

WASHER

6шт.

34

PY05P01134P1

INSULATION

2шт.

35

PY05P01135P1

INSULATION

2шт.

36

PY05P01125P1

INSULATION

2шт.

37

PY05P01192P1

TUBE

2шт.

38

ZS18C08035

SCREW,Hex, M8 x 35mm

Cap

2шт.

39

2418T23178

WASHER

2шт.

40

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

5шт.
