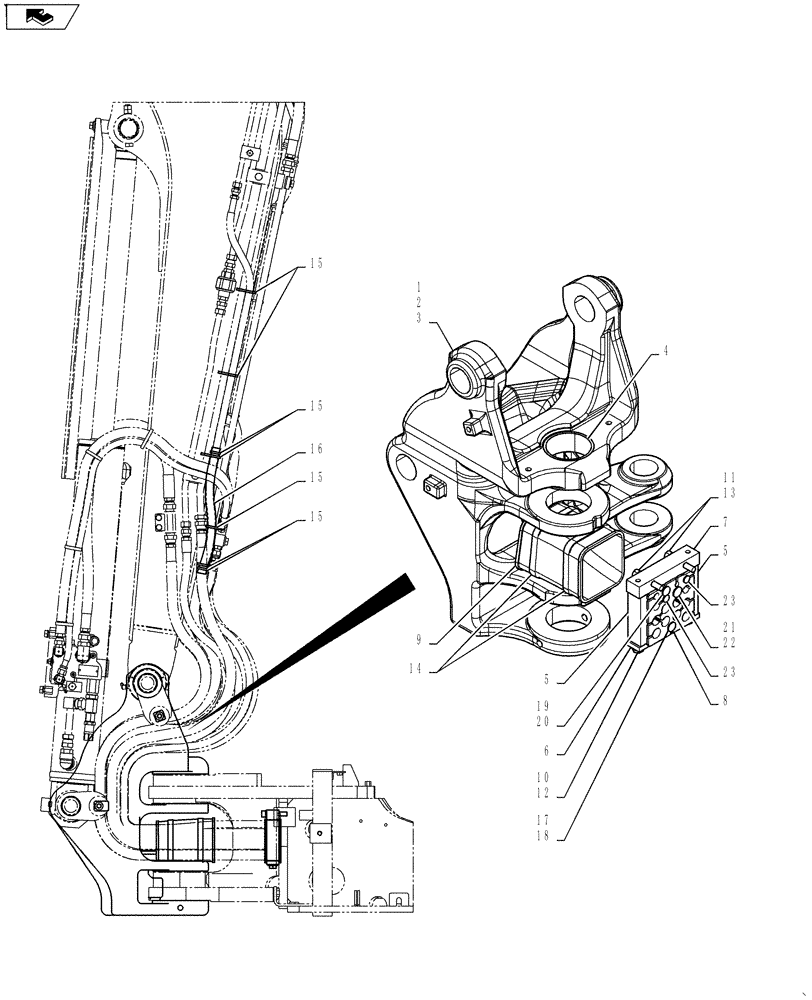

Запчасти Case CX55BMSR (01-090[00]) - BRACKET GROUP, SWING (ROTARY, NIBBLER & BREAKER) (39) - FRAMES AND BALLASTING

.

Swing Bracket Group (Rotary, Nibbler & Breaker) PY02B00277F1

1шт.

1

NSS

NOT SOLD SEPARAT

Swing Bracket Group PY02B00278F1

1шт.

2

PY02B00214F1

BRACKET

Swing, Incl 3 - 4

1шт.

3

PY02B00215P1

BRACKET

Swing

1шт.

4

PY02B01146P1

BUSHING,80mm ID x 90mm OD x 40.5mm L

1шт.

5

PY02B01357P1

PLATE

2шт.

6

PY02B01356P1

PLATE

1шт.

7

PY02B01245P1

PLATE

1шт.

8

PY02B01402P1

RUBBER BLOCK

1шт.

9

PY02B01299P1

GUIDE

Grommet

1шт.

10

HS18C10140G1

SCREW,M10 x 140mm, Cl 10.9

Cap

2шт.

11

ZS28C10055

SCREW,Hex Socket Head, M10 x 55mm

Cap

2шт.

12

ZW16H10000

WASHER

2шт.

13

ZW26X10000

LOCK WASHER

2шт.

14

YX03H01046P1

CLIP

2шт.

15

PY01P01043D5

CABLE TIE,301mm L

7шт.

16

2414Z199D40

PROTECTIVE SLEEVE

Tube

1шт.

17

NSS

NOT SOLD SEPARAT

Swing Bracket Group PV02B00202F1

1шт.

18

PX02B01281P1

RUBBER BLOCK

1шт.

19

NSS

NOT SOLD SEPARAT

Swing Bracket Group PV02B00203F1, Serial Range: PS02-00101-PS02-00355

1шт.

19

NSS

NOT SOLD SEPARAT

Swing Bracket Group PY02B00280F1, Start Serial: PS02-00356

1шт.

20

PX02B01281P1

RUBBER BLOCK

, Serial Range: PS02-00101-PS02-00355

1шт.

20

PY02B01260P1

RUBBER BLOCK

, Start Serial: PS02-00356

1шт.

21

NSS

NOT SOLD SEPARAT

Swing Bracket Group PV02B00239F1

1шт.

22

PV02B01376P1

RUBBER BLOCK

1шт.

23

PX02B01280P1

RUBBER BLOCK

2шт.
