(01-004[00]) - COUNTERWEIGHT INSTALL (GAIN)

Запчасти Case CX55BMSR (01-004[00]) - COUNTERWEIGHT INSTALL (GAIN) (39) - FRAMES AND BALLASTING

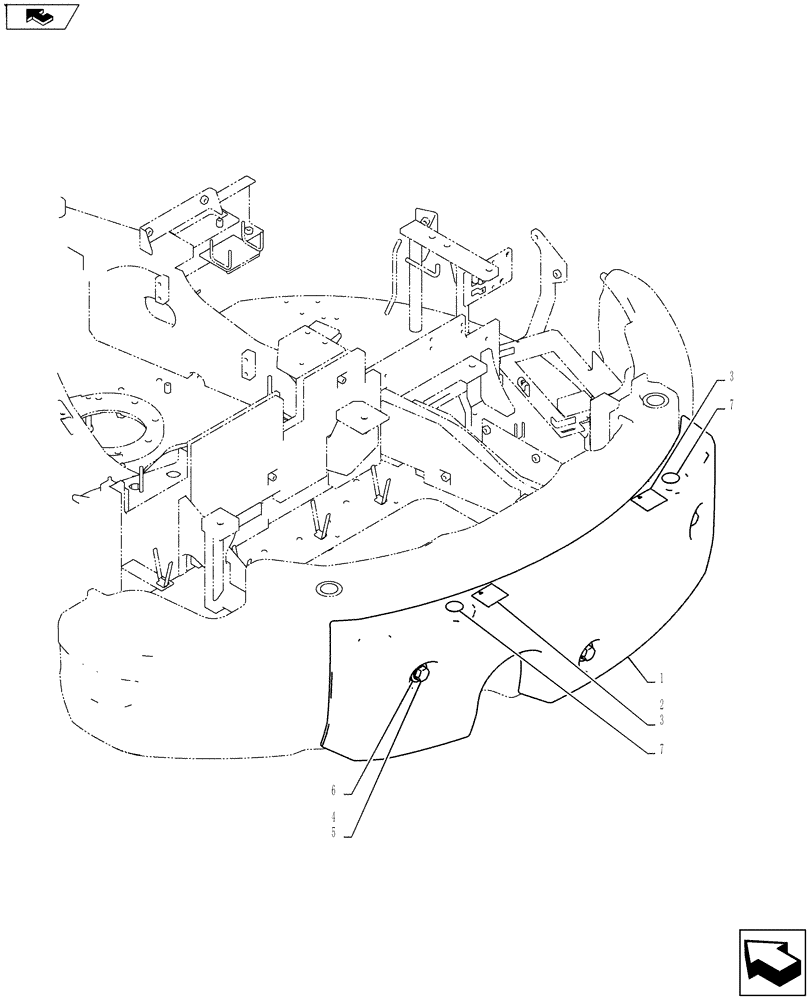

Схема запчастей Case CX55BMSR - (01-004[00]) - COUNTERWEIGHT INSTALL (GAIN) (39) - FRAMES AND BALLASTING
5
2
6
3
home
1
7
7
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

(Gain) Counterweight Install PY60C00024F1

1шт.

1

PY60C00020P1

COUNTERWEIGHT

Gain

1шт.

2

NSS

NOT SOLD SEPARAT

Counterweight Assy PY60C00022F1

1шт.

3

YN20T01221P1

DANGER DECAL

2шт.

4

NSS

NOT SOLD SEPARAT

Counterweight Install PY60C00023F1

1шт.

5

HS18C20135G1

BOLT

3шт.

6

HY26Y21050G4

WASHER

3шт.

7

LE60C01028P1

PLATE

2шт.
