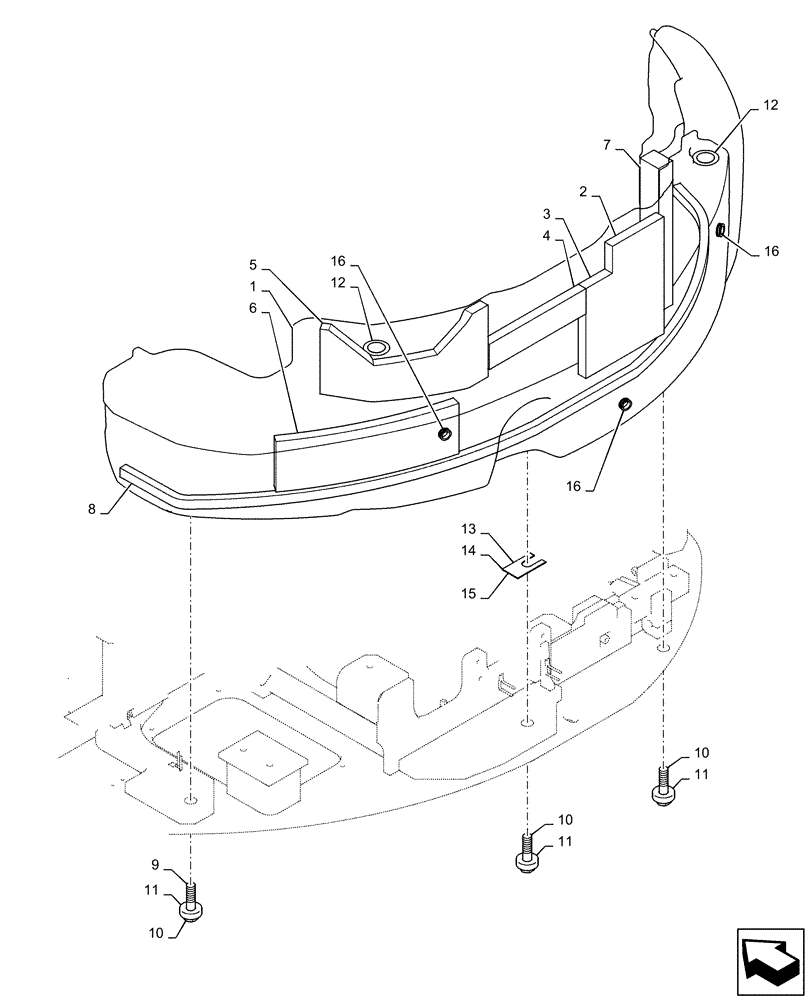

Запчасти Case CX55BMSR (01-003[00]) - COUNTERWEIGHT INSTALL (39) - FRAMES AND BALLASTING

.

Counterweight Install PY60C00019F1

1шт.

1

PY60C00016P1

COUNTERWEIGHT

1шт.

2

NSS

NOT SOLD SEPARAT

Counterweight Assembly PY60C00017F1, Incl 3 - 8

1шт.

3

PY60C01013P1

INSULATION

1шт.

4

PY60C01017P1

INSULATION

1шт.

5

PY60C01016P1

INSULATION

1шт.

6

PY60C01018P1

INSULATION

1шт.

7

PY60C01019P1

INSULATION

1шт.

8

PY60C01012P1

RUBBER INSULATOR

1шт.

9

NSS

NOT SOLD SEPARAT

Counterweight Install PY60C00018F1, Incl 10 - 16

1шт.

10

HS18C20080G1

SCREW

3шт.

11

HY26Y21050G4

WASHER

3шт.

12

LE60C01028P1

PLATE

2шт.

13

YT60C01006D1

SHIM,3.2mm Thk

(3.2)

2шт.

14

YT60C01006D2

SHIM,20.mm Thk

(2.0)

2шт.

15

YT60C01006D3

SHIM,1.0mm Thk

(1.0)

2шт.

16

YT60C01007P1

PLUG

3шт.
