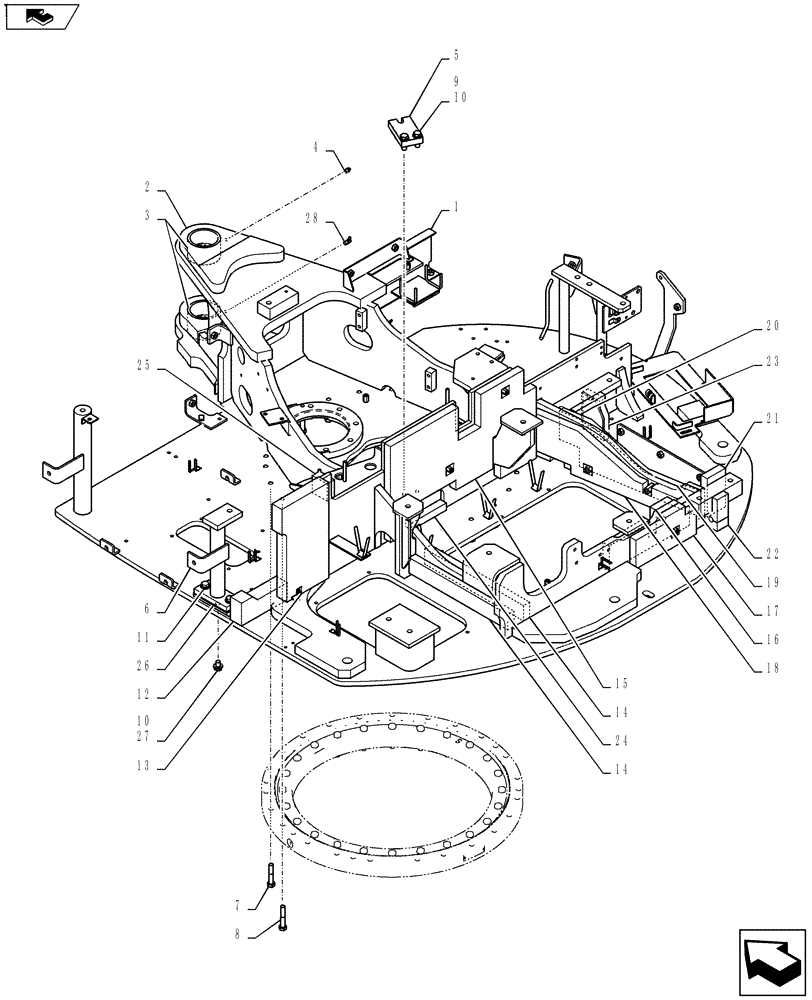

Запчасти Case CX55BMSR (01-002[00]) - FRAME GROUP, UPPER (39) - FRAMES AND BALLASTING

PY52F00046F1

Upp.

1шт.

1

PY52F00047P1

Upp.

1шт.

2

PY52F00048P1

Upp., Serial Range: PS02-00101-PS02-00103

1шт.

2

PY52F00070P1

Upp., Start Serial: PS02-00104

1шт.

3

PY52F01120P1

BUSHING

2шт.

4

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

1шт.

5

PH52F01385P1

PLATE

1шт.

6

PY52F01333P1

SUPPORT

, Serial Range: PS02-00101-PS02-00803

1шт.

6

PY52F01333P2

SUPPORT

, Start Serial: PS02-00804

1шт.

7

ZS18C12065

SCREW,Hex, M12 x 65mm

Cap

26шт.

8

HS58C12070G2

BOLT

1шт.

9

ZS18C12040

SCREW,Hex, M12 x 40mm

Cap

2шт.

10

ZW16H12000

WASHER

3шт.

11

ZM73C12040

BOLT,M12x40mm - Course Thread

Sems

2шт.

12

PY52F01289P1

INSULATION

1шт.

13

PY52F01356P1

INSULATION

1шт.

14

PY52F01207P1

INSULATION

, Serial Range: PS02-00101-PS02-00102

2шт.

14

PY52F01357P1

INSULATION

, Serial Range: PS02-00103-PS02-00103

1шт.

14

PY52F01207P1

INSULATION

, Start Serial: PS02-00104

1шт.

15

PY52F01254P1

INSULATION

, Serial Range: PS02-00101-PS02-00102

1шт.

15

PY52F01364P1

INSULATION

, Serial Range: PS02-00103-PS02-00103

1шт.

15-1

PY52F01370P1

INSULATION

, Serial Range: PS02-00103-PS02-00103

1шт.

15

PY52F01254P1

INSULATION

, Start Serial: PS02-00104

1шт.

16

PY52F01361P1

INSULATION

1шт.

17

PY52F01359P1

INSULATION

, Serial Range: PS02-00101-PS02-00102

1шт.

17

PY52F01371P1

INSULATION

, Serial Range: PS02-00103-PS02-00103

1шт.

17

PY52F01359P1

INSULATION

, Start Serial: PS02-00104

1шт.

18

PY52F01256P1

INSULATION

1шт.

19

PY52F01204P1

INSULATION

1шт.

20

PY52F01218P1

INSULATION

1шт.

21

PY52F01216P1

INSULATION

1шт.

22

PY52F01210P1

RUBBER INSULATOR

1шт.

23

PY52F01255P1

INSULATION

1шт.

24

PY52F01260P1

INSULATION

1шт.

25

PY52F01308P1

INSULATION

1шт.

26

PY52F01318P1

SHIM

3.2mm

1шт.

27

ZS18C12018

SCREW,Hex, M12 x 18mm

1шт.

28

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

1шт.
