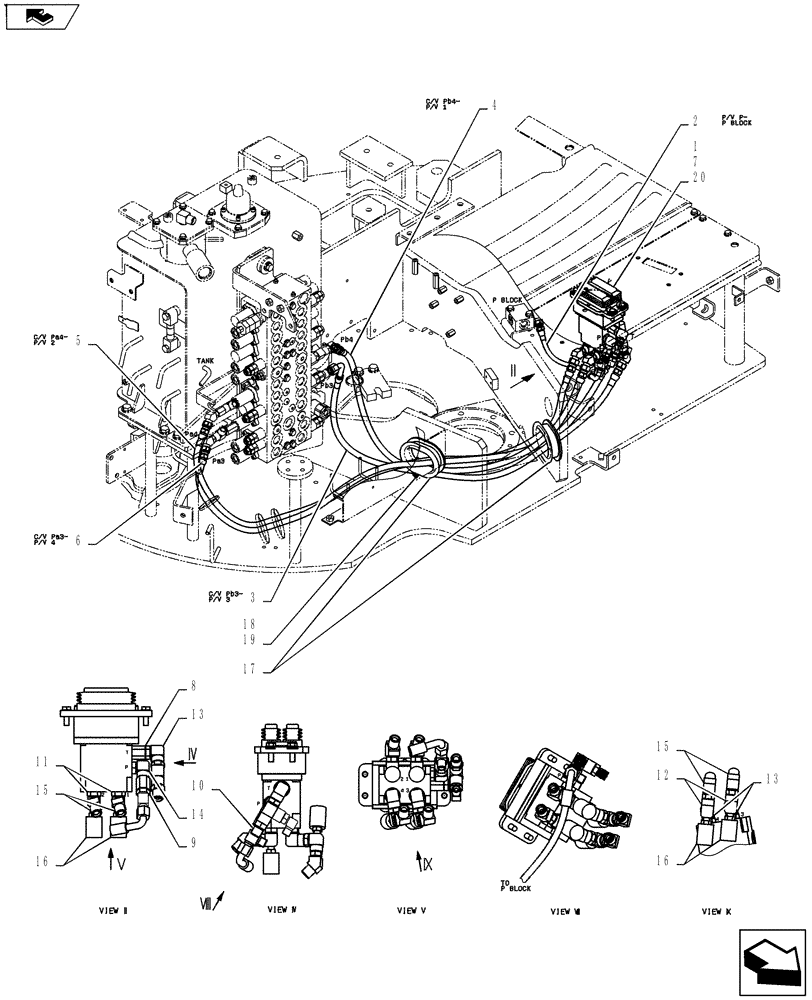

Запчасти Case CX55BMSR (05-001[01]) - CONTROL LINES, PROPEL (ALARM) (35) - HYDRAULIC SYSTEMS

.

Control Lines Propel (Alarm) PY62H00020F1

1шт.

1

PM30V00019F7

PILOT VALVE

, Serial Range: PS02-00101-PS02-01836

1шт.

1

PX30V00082F2

PILOT VALVE

, Start Serial: PS02-01837

1шт.

2

HX34L04028DX

HOSE

, Serial Range: PS02-00101-PS02-01072

1шт.

2

HX34L04030DX

HOSE

, Start Serial: PS02-01073

1шт.

3

HX34L06115DX

HOSE

1шт.

4

HX24L06105DX

HOSE

1шт.

5

HX24L06150DX

HOSE

1шт.

6

HX24L06155DX

HOSE

1шт.

7

PW62H01003P1

PLATE

, Serial Range: PS02-00108-PS02-01836

2шт.

8

2444Z2525

HYD CONNECTOR

1шт.

9

PH62H01004P1

HYD CONNECTOR

1шт.

10

HH25S06004G3

HYD CONNECTOR

1шт.

11

2444Z4231

ELBOW

2шт.

12

2444Z3836

ELBOW

2шт.

13

2444Z2894

90 ELBOW

3шт.

14

PH62H01003P1

ELBOW

1шт.

15

HH45S06004G1

45 ELBOW

4шт.

16

GB50S00049F2

SWITCH

(Travel RH, LH, Fwd, Rev) Pressure

4шт.

17

PH62H01001P1

GROMMET

2шт.

18

YN13E01375P1

CLIP,M8 x 8.20mm Shank

1шт.

19

PY01P01043D8

CABLE TIE,102mm L

1шт.

20

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

4шт.
