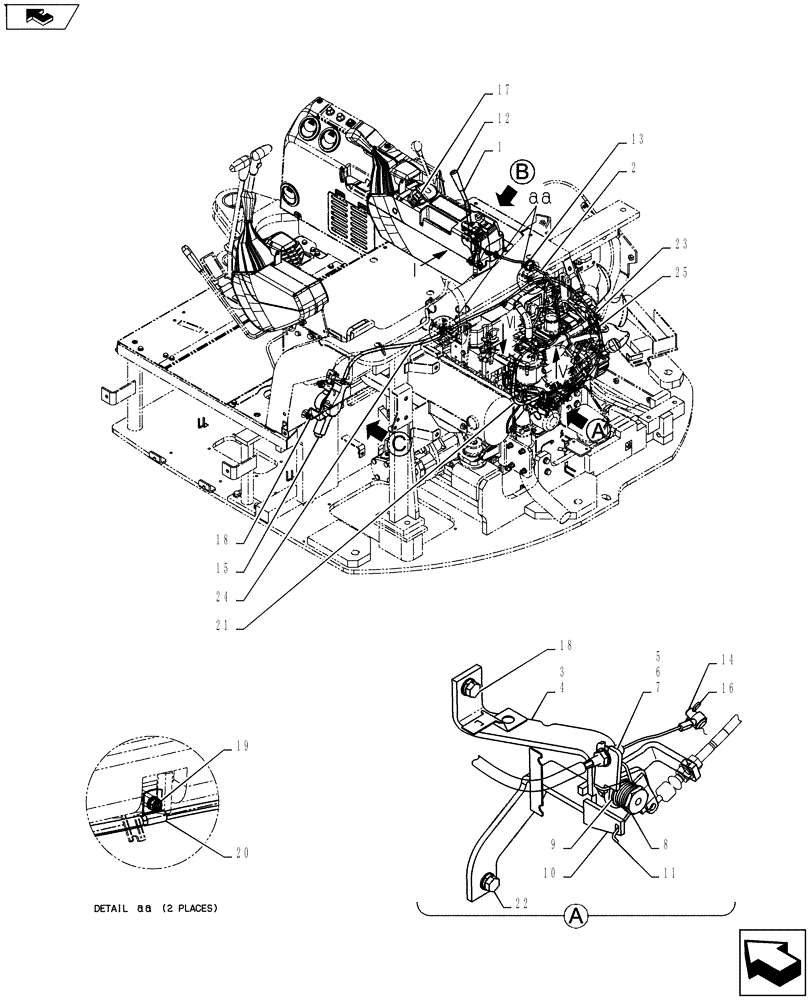

Запчасти Case CX55BMSR (01-006[01]) - ENGINE CONTROL ASSY (CAB) (10) - ENGINE

.

Engine Control (Cab) PY11M00008F1

1шт.

1

PH51M00011F1

LEVER ASSY.

Throttle

1шт.

2

PH11M01072P1

CABLE,1175mm L

Control

1шт.

3

PH11M01282F1

BRACKET, SUPPORTING

Link Assembly, Incl 4 - 11

1шт.

4

NSS

NOT SOLD SEPARAT

Bracket PH11M01278P1

1шт.

5

NSS

NOT SOLD SEPARAT

Link Assembly PH11M01257F1, Incl 6 - 7

1шт.

6

NSS

NOT SOLD SEPARAT

Link PH11M01258P1

1шт.

7

2405R312D1512

BUSHING,15mm ID x 17mm OD x 12mm L

1шт.

8

PW11M01112P2

NUT

1шт.

9

PW11M01143P1

WASHER

1шт.

10

PW11M01144P1

WASHER

1шт.

11

PH11M01123P3

SPRING

1шт.

12

2406Z321

HANDLE

Grip

1шт.

13

YT11M01012P1

GROMMET

1шт.

14

PW11M01071P1

PIN,8mm OD x 19mm L

1шт.

15

PY20S00003F1

GOVERNOR

1шт.

16

2419R9D2

COTTER PIN

1шт.

17

PM50S00005P1

SWITCH

Deceleration

1шт.

18

ZM22C08020

BOLT

Sems

6шт.

19

ZM61C06016

BOLT

Sems

2шт.

20

ZC46X06007

CLIP

2шт.

21

PE13E01034D5

TUBE

1шт.

22

ZM22C10020

BOLT

Sems

1шт.

23

PY01P01043D3

CABLE TIE,188mm L

1шт.

24

PE13E01034D6

TUBE

1шт.

25

PU06C01020D9

TUBE

1шт.
