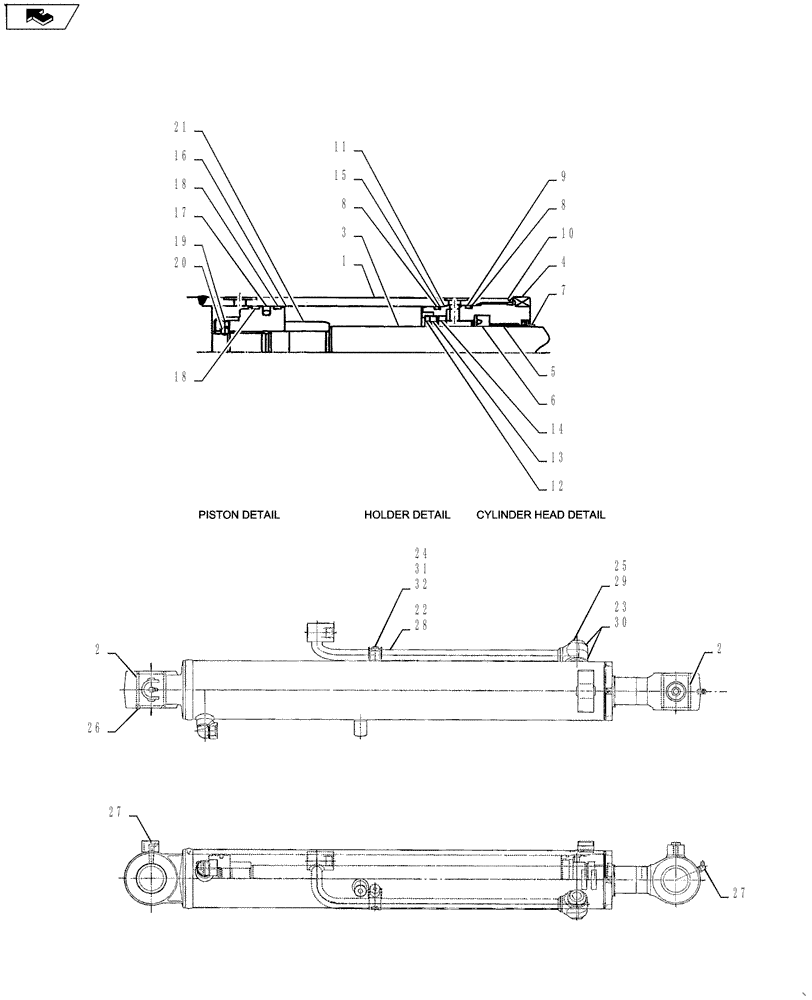

Запчасти Case CX55BMSR (03-007[02]) - CYLINDER INSTALL (BOOM) (35) - HYDRAULIC SYSTEMS

.

PY01V00054F1

CYLINDER

Assembly, Incl 1 - 32, Start Serial: PS02-00101

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

2

PY01V01023P1

BUSHING

2шт.

3

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

4

PY01V00054S004

CYLINDER HEAD

1шт.

5

PY01V00050S005

BUSHING

1шт.

6

2438U1116S5

RING

1шт.

7

YJ01V00008S006

WIPER

Ring

1шт.

8

ZD12G09500

O-RING,3.1mm Thk x 94.4mm ID, 90 Duro

2шт.

9

PY01V00030S008

BACK-UP RING

1шт.

10

ZD12G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

11

PY01V00030S010

HOLDER

1шт.

12

PY01V00030S029

SPACER

1шт.

13

PY01V00030S011

SEAL

1шт.

14

PY01V00030S012

COLLAR

1шт.

15

2438U1115S8

BACK-UP RING

1шт.

16

PY01V00054S016

PISTON

1шт.

17

2438U827S20

SEALING RING

SEALRING

1шт.

18

PY01V00054S018

RING

2шт.

19

2438U986S18

SET SCREW

1шт.

20

2436U281S37

BALL

1шт.

21

PY01V00054S021

RING

1шт.

22

PY01V00054S022

TUBE

, Serial Range: PS02-00101-PS02-00111

1шт.

23

PY01V00054S023

O-RING

, Serial Range: PS02-00101-PS02-00111

2шт.

24

PY01V00054S024

BOLT

, Serial Range: PS02-00101-PS02-00111

1шт.

25

PY01V00054S025

PLUG

, Serial Range: PS02-00101-PS02-00111

1шт.

26

PY01V00053S016

SEAL

4шт.

27

PR01V00027S023

LUBE NIPPLE

2шт.

28

PY01V00066S022

TUBE

, Start Serial: PS02-00112

1шт.

29

PY01V00066S023

PLUG

, Start Serial: PS02-00112

1шт.

30

ZD12P02600

O-RING

, Start Serial: PS02-00112

2шт.

31

PY01V00052S019

BOLT

, Start Serial: PS02-00112

1шт.

32

PY01V00030S031

HOLDER

Clamp, Start Serial: PS02-00112

1шт.

PY01V00054R100

REPAIR KIT

Consists Of Item: 1(1), 2(1), 26(2)

1шт.

PY01V00054R200

REPAIR KIT

Consists Of Item: 2(1), 3(1), 26(2)

1шт.

PY01V00054R300

REPAIR KIT

Consists Of Item: 6(1), 7(1), 9(1), 10(1), 15(1), 17(1), 8(2), 18(2)

1шт.
