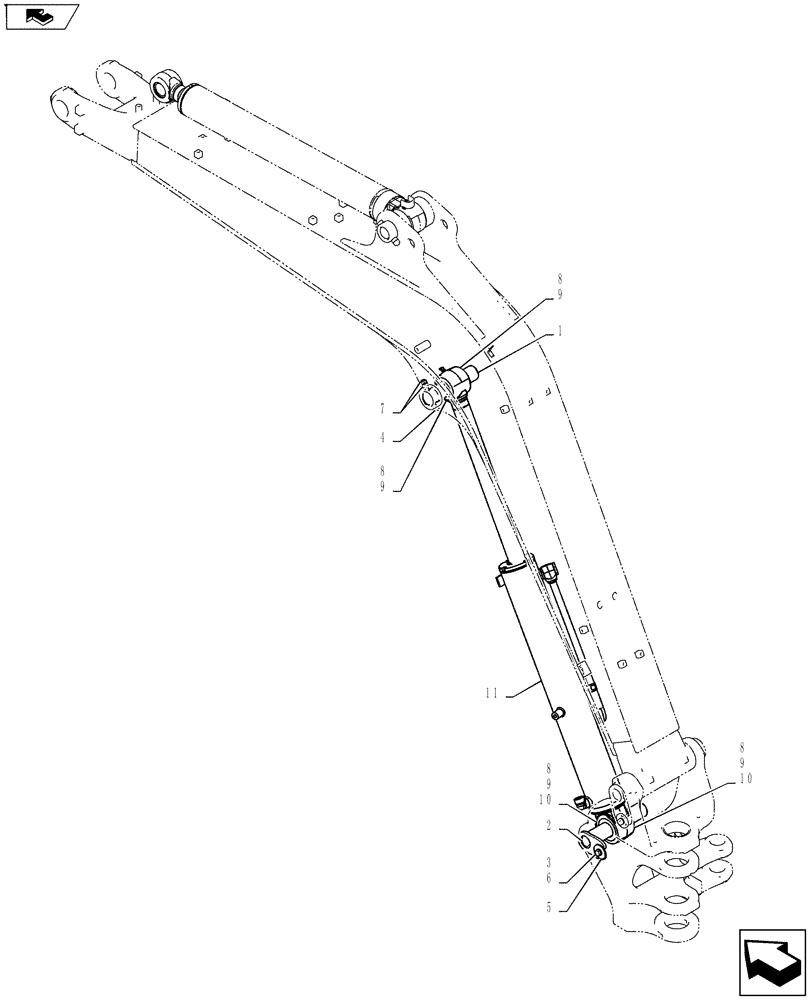

Запчасти Case CX55BMSR (03-007[01]) - CYLINDER INSTALL (BOOM) (35) - HYDRAULIC SYSTEMS

.

(Boom) Cylinder Install PY02B00221F1, Start Serial: PS02-00101

1шт.

1

PH02B01054P1

PIN,50mm OD x 213mm L

1шт.

2

PY02B01267P1

PIN,50mm OD x 263mm L

1шт.

3

ZS18C12020

SCREW,Hex, M12 x 20mm

Cap

1шт.

4

HS18C12100G2

SCREW

Cap

1шт.

5

2418T17895

WASHER

1шт.

6

ZW26X12000

LOCK WASHER

1шт.

7

ZN18C12010

NUT

2шт.

8

B16T0442D54

SHIM,52mm ID x 80mm OD x 0.5mm Thk

4шт.

9

B16T0442D41

SHIM,80mm OD x 52mm ID x 0.9mm Thk

3шт.

10

B16T0442D24

SHIM,80mm OD x 52mm ID x 2.3mm Thk

3шт.

11

PY01V00054F1

CYLINDER

Boom

1шт.
