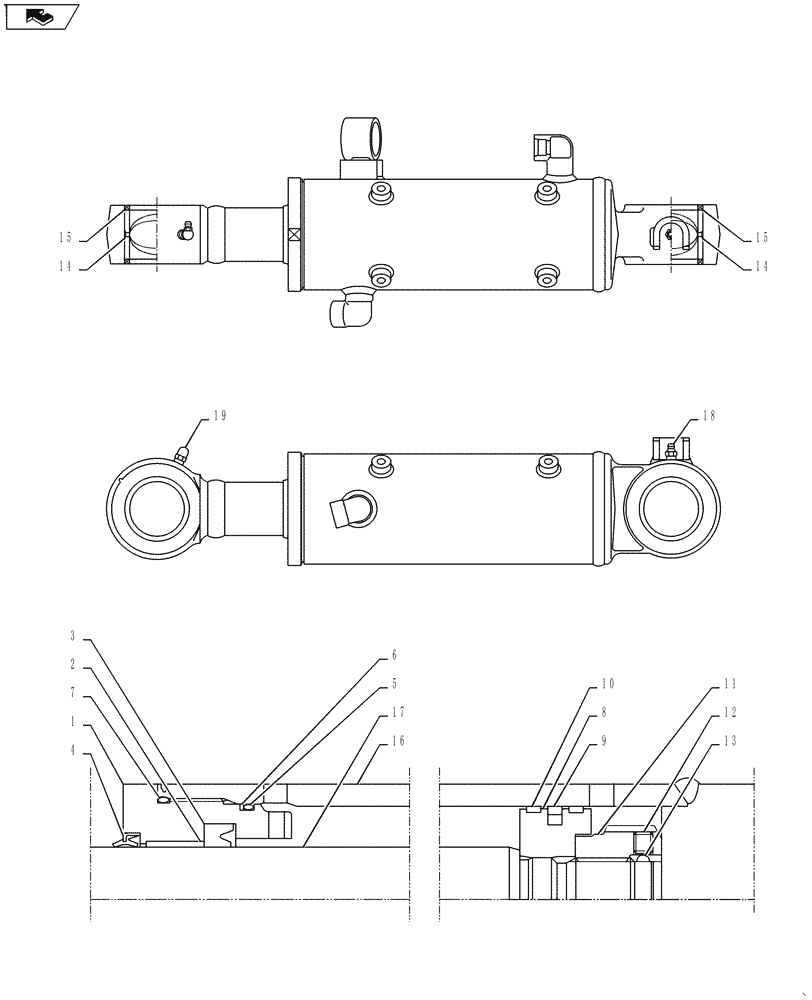

Запчасти Case CX55BMSR (02-026[02]) - CYLINDER INSTALL (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS

PY51B00079F1

(Angle Dozer), Start Serial: PS02-00101

1шт.

1

PY01V00036S003

CYLINDER HEAD

1шт.

2

PH01V00018S004

BUSHING

1шт.

3

2438U1116S5

RING

U

1шт.

4

YJ01V00009S006

RING

1шт.

5

ZD12G10500

O-RING,104.40mm ID x 110.60mm OD x 3.10mm

1шт.

6

PY01V00036S008

RING

Back Up

1шт.

7

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

8

PY01V00036S010

PISTON

1шт.

9

2438U716S23

SEAL

SEALRING

1шт.

10

PY01V00036S012

RING

2шт.

11

PY01V00036S013

NUT

1шт.

12

2438U986S18

SET SCREW

1шт.

13

2436U281S37

BALL

1шт.

14

PY01V00012S016

BUSHING

2шт.

15

2438U716S25

SEAL

Ring, Wiper

4шт.

16

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

17

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

18

PR01V00028S025

LUBE NIPPLE

1шт.

19

PR01V00029S023

LUBE NIPPLE

1шт.

PY01V00036R300

REPAIR KIT

Consists Of Item: 3(1), 4(1), 5(1), 6(1), 7(1), 9(1), 10(2)

1шт.

PY01V00036R400

KIT

Consists Of Item: 14(1), 16(1)

1шт.

PY01V00036R500

KIT

Consists Of Item: 14(1), 17(1)

1шт.
