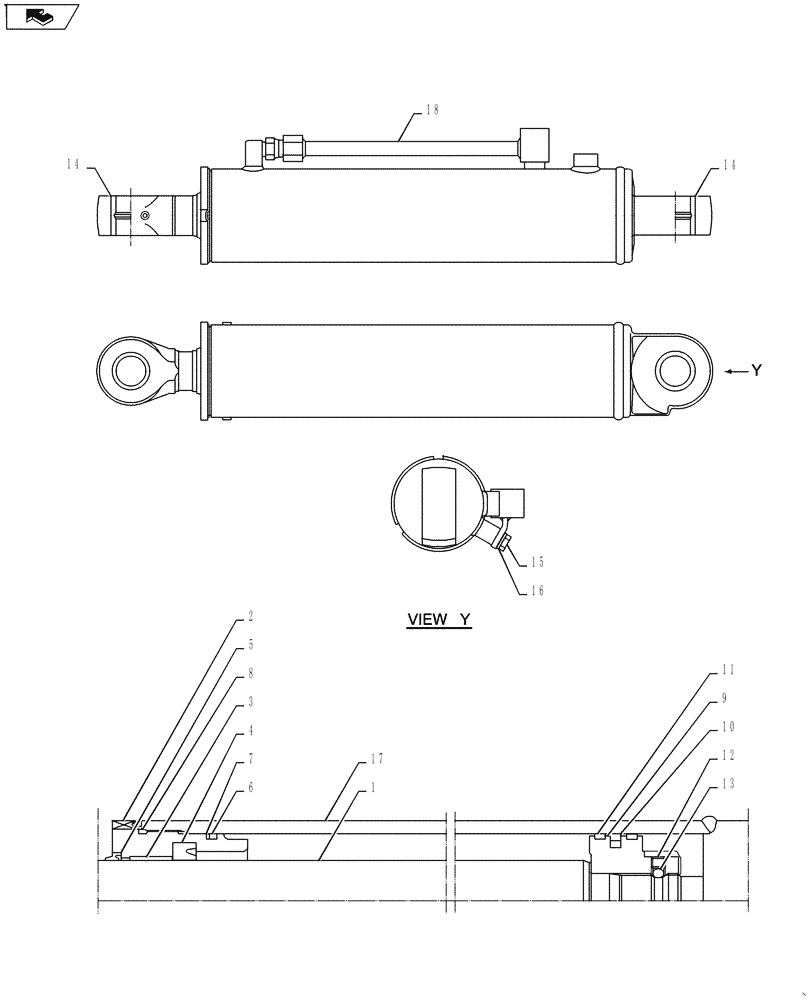

Запчасти Case CX55BMSR (02-025[03]) - CYLINDER, ASSY (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS

.

PY01V00073F1

HYDRAULIC CYLINDER

Assembly (Angle Dozer) Incl 1 - 18, Start Serial: PS02-01794

1шт.

1

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

2

PH01V00006S003

CYLINDER HEAD

1шт.

3

PW01V00010S004

BUSHING

1шт.

4

2438U635S3

RING

1шт.

5

PH01V00006S006

RING

1шт.

6

ZD12G08500

O-RING,84.40mm ID x 90.60mm OD x 3.10mm

1шт.

7

PH01V00006S008

BACK-UP RING

1шт.

8

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

9

2438U1116S16

JACK PISTON

1шт.

10

2438U715S24

RING

Seal

1шт.

11

2438U1116S18

RING

Slide

2шт.

12

2438U1057S16

SET SCREW

1шт.

13

2436U946S11

BALL

1шт.

14

PY01V00035S015

BUSHING

2шт.

15

PY01V00073S017

BOLT

1шт.

16

PY01V00073S018

WASHER

1шт.

17

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

18

PY01V00035S020

TUBE

1шт.

2438U1116R200

SEAL PACKAGE

Consists Of Item: 10(1), 11(1)

1шт.

PY01V00073R200

KIT

Consists Of Item:4(1), 5(1), 6(1), 7(1), 8(1)

1шт.

PH01V00006R100

REPAIR KIT

Consists Of Item:4(1), 5(1), 6(1), 7(1), 8(1), 10(1), 11(2)

1шт.

PY01V00073R400

KIT

Consists Of Item:14(1), 17(1)

1шт.

PY01V00073R500

KIT

Consists Of Item:1(1), 14(1)

1шт.
