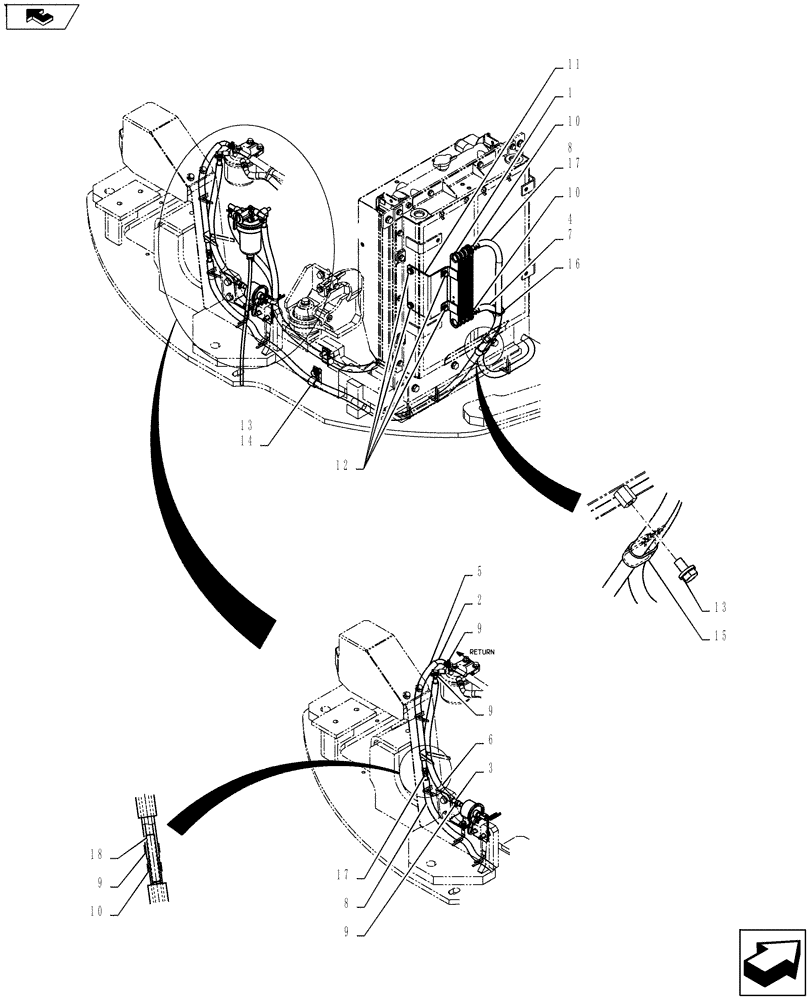

Запчасти Case CX55BMSR (01-005[02]) - FUEL LINES (10) - ENGINE

.

Fuel Line Install PY21P00004F1

1шт.

1

PY53V00005P1

OIL COOLER

Oil

1шт.

2

PY21P01024D1

HOSE

1шт.

3

PA21P01004D6

HOSE

1шт.

4

PH21P01008DA

HOSE

1шт.

5

HX81X13032DX

TUBE

1шт.

6

HX81X13040DX

TUBE

1шт.

7

HX81X13195DX

TUBE

1шт.

8

HX81X13170DX

TUBE

1шт.

9

PH05P01088D5

CLIP

8шт.

10

PH05P01088D6

CLIP

4шт.

11

PY21P01015P1

BRACKET

1шт.

12

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

4шт.

13

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

7шт.

14

ZC46X19011

CLIP

4шт.

15

ZC48X18011

CLIP

1шт.

16

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

1шт.

17

PH21P01008DD

HOSE

1шт.

18

PY21P01019P1

JOINT

1шт.
