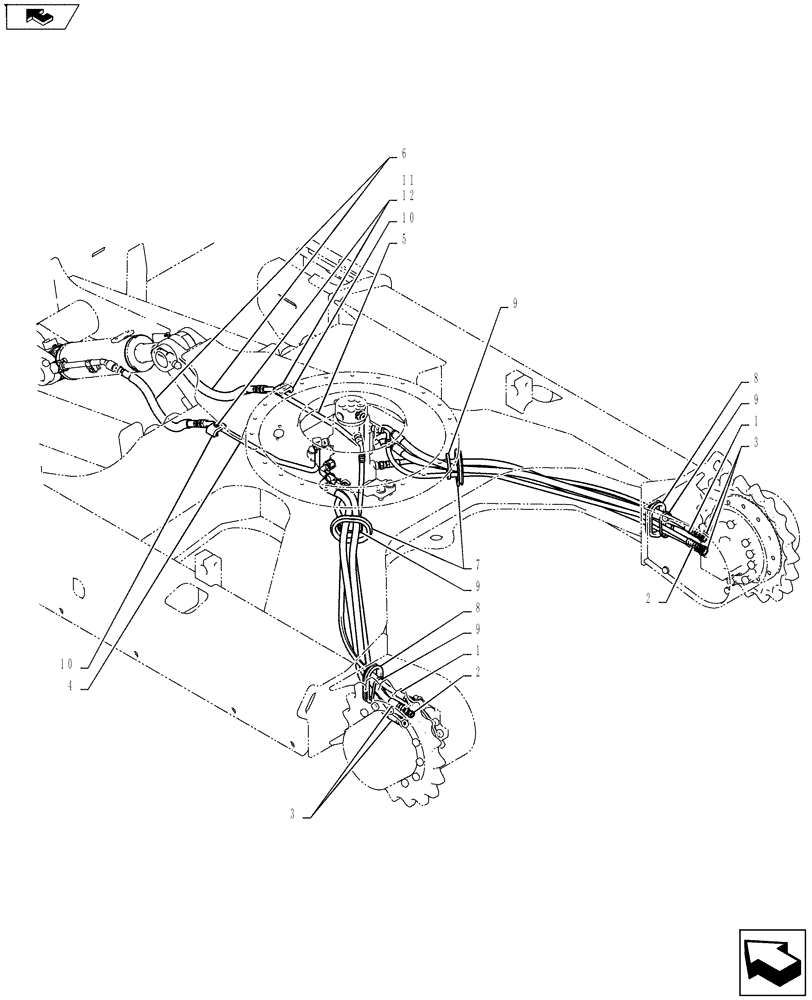

Запчасти Case CX55BMSR (02-012[00]) - HYD LINES, LOW (35) - HYDRAULIC SYSTEMS

PY02H00015F1

Low

1шт.

1

HX23L06110DY

HOSE,9.5mm ID x 1100mm L

2шт.

2

HX33L04120DX

HOSE,6.3mm ID x 1200mm L

2шт.

3

HX35L08115DX

HOSE,12.7mm ID x 1150mm L

4шт.

4

PY02H01118P1

TUBE

1шт.

5

PY02H01119P1

TUBE

1шт.

6

PH02H01051D6

HOSE ASSY.

2шт.

7

PY02H01113P1

GROMMET

2шт.

8

PH02H01136P1

GROMMET

2шт.

9

PY01P01043D8

CABLE TIE,102mm L

4шт.

10

ZC26X15009

CLAMP

2шт.

11

ZS18C08040

SCREW,Hex, M8 x 40mm

Cap

2шт.

12

ZW26X08000

LOCK WASHER

Lock

2шт.
