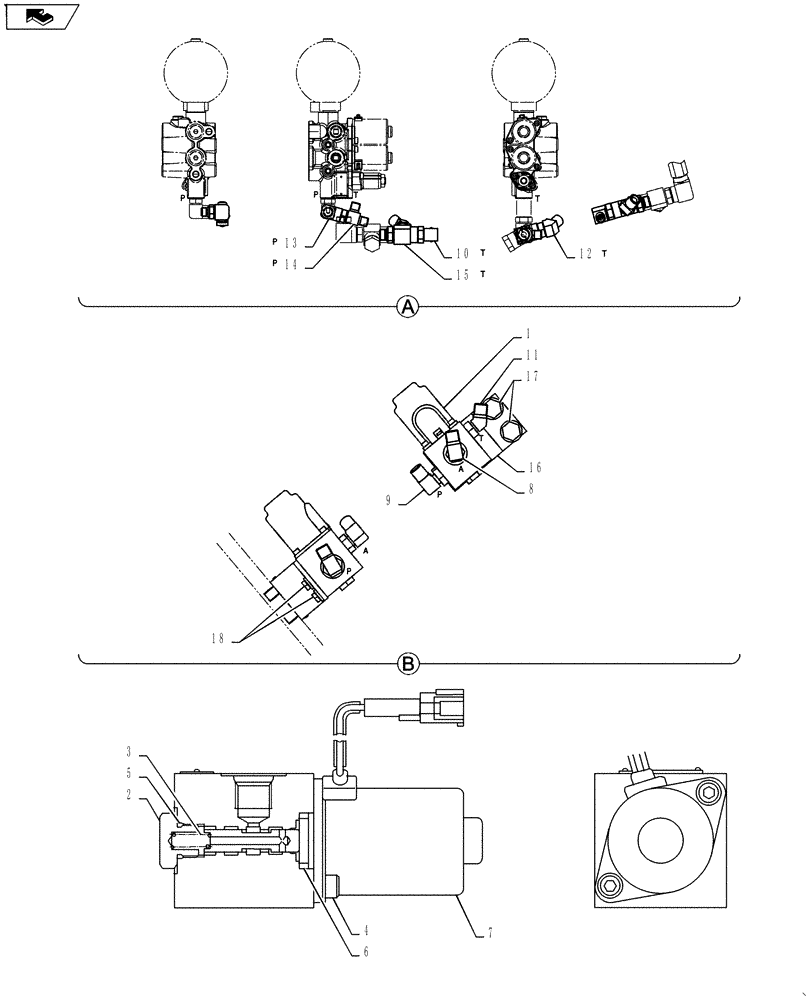

Запчасти Case CX55BMSR (01-042[06]) - CONTROL LINES, VALVE (ROTARY) (35) - HYDRAULIC SYSTEMS

.

Control Lines Valve (Rotary) PY64H00111F1

1шт.

1

YJ35V00004F2

SOLENOID VALVE

Assembly, (Used for Power Shift (Cooler Spec)), Incl 2 - 7

1шт.

2

2436U2159S3

PLUG

1шт.

3

2436U2802S3

SPRING

1шт.

4

EN35V00004S010

BOLT

2шт.

5

ZD11P01000

O-RING

1шт.

6

ZD11P01600

O-RING

1шт.

7

PY35V00005S005

SOLENOID

Power Shift, Serial Range: PS02-00101-PS02-00529

1шт.

7

PY35V00009S007

SOLENOID

Power Shift, Start Serial: PS02-00530

1шт.

7-1

YN30V00080S023

SCREW

Not Shown, Start Serial: PS02-00530

2шт.

8

HH35S04004G1

90 ELBOW

1шт.

9

HH35S04004G2

90 ELBOW

1шт.

10

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

1шт.

11

HH45S04004G1

45 ELBOW

2шт.

12

HH45S06006G1

45 ELBOW

1шт.

13

2444Z2894

90 ELBOW

1шт.

14

HH55L04004G1

TEE

1шт.

15

HH55Q06006G1

TEE

1шт.

16

PY64H01052P1

BRACKET

1шт.

17

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

18

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.
