(01-042[05]) - CONTROL LINES, VALVE (ROTARY)

Запчасти Case CX55BMSR (01-042[05]) - CONTROL LINES, VALVE (ROTARY) (35) - HYDRAULIC SYSTEMS

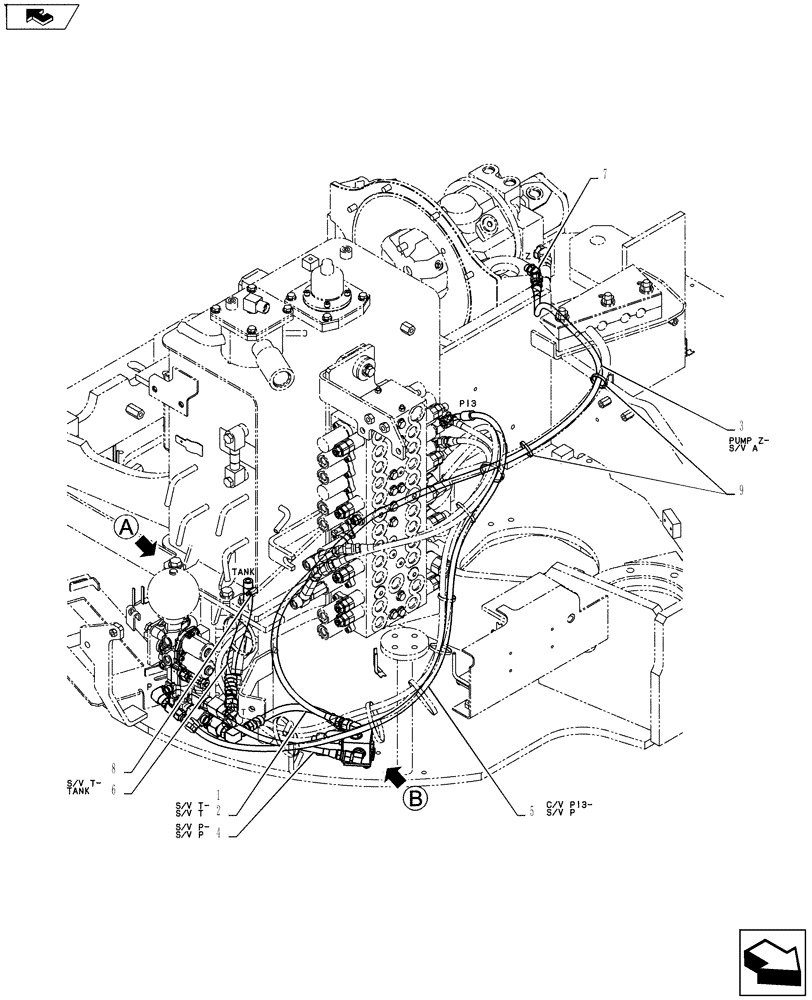

Схема запчастей Case CX55BMSR - (01-042[05]) - CONTROL LINES, VALVE (ROTARY) (35) - HYDRAULIC SYSTEMS
home
9
8
4
7
2
5
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Control Lines Valve (Rotary) PY64H00111F1

1шт.

1

NSS

NOT SOLD SEPARAT

Control Lines Valve PY64H00098F1

1шт.

2

HX24L04026DX

HOSE ASSY.

1шт.

3

HX24L04180DX

HOSE ASSY.

1шт.

4

HX34L04036DX

HOSE,6.3mm ID x 360mm L

1шт.

5

HX34L04125DX

HOSE

1шт.

6

PW68H01023DS

HOSE

1шт.

7

HH45S04004G1

45 ELBOW

2шт.

8

ZC16X01800

CLIP

1шт.

9

PY01P01043D5

CABLE TIE,301mm L

2шт.

Выбрано товаров: 10
