(01-041[02]) - CONTROL LINES, MAIN (ROTARY, NIBBLER & BREAKER)

Запчасти Case CX55BMSR (01-041[02]) - CONTROL LINES, MAIN (ROTARY, NIBBLER & BREAKER) (35) - HYDRAULIC SYSTEMS

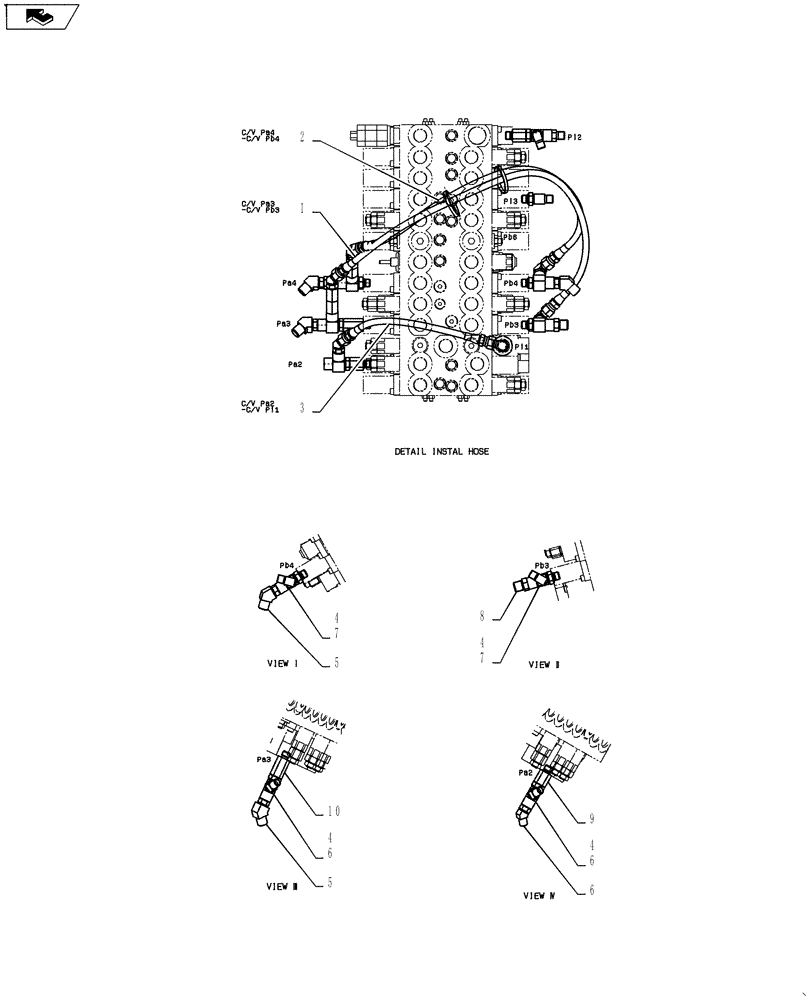

Схема запчастей Case CX55BMSR - (01-041[02]) - CONTROL LINES, MAIN (ROTARY, NIBBLER & BREAKER) (35) - HYDRAULIC SYSTEMS
4
6
6
1
4
3
7
5
9
4
home
10
5
8
4
2
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Main Control Lines (Rotary, Nibbler & Breaker) PY06H00027F1, Start Serial: PS02-00101

1шт.

1

HX24L04086DX

HOSE

1шт.

2

HX24L04072DX

HOSE ASSY.

1шт.

3

HX24L04032DX

HOSE ASSY.

1шт.

4

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

7шт.

5

HH45S06004G1

45 ELBOW

3шт.

6

HH45S04004G1

45 ELBOW

6шт.

7

HH35S04004G2

90 ELBOW

2шт.

8

HH25S06004G3

HYD CONNECTOR

1шт.

9

2444Z2525

HYD CONNECTOR

5шт.

10

2444T2524D2

HYD CONNECTOR

2шт.
