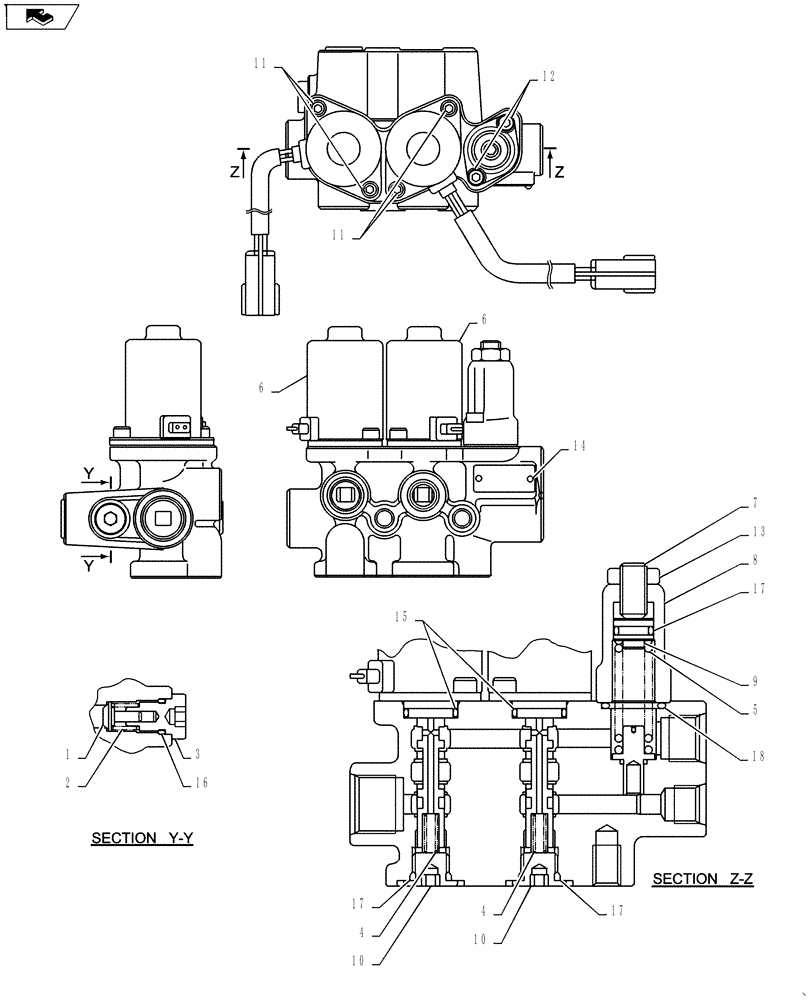

Запчасти Case CX55BMSR (01-033[03]) - CONTROL LINES, VALVE (CANOPY) (35) - HYDRAULIC SYSTEMS

.

Solenoid Valve Install (Canopy) PY64H00116F1, Start Serial: PS02-00101

1шт.

.

PY35V00008F1

SOLENOID VALVE

Assembly, incl 1 - 18

1шт.

1

PY35V00008S001

POPPET

1шт.

2

PY35V00008S002

SPRING

1шт.

3

PY35V00008S003

PLUG

1шт.

4

2436U2802S3

SPRING

2шт.

5

PY35V00009S005

SPRING

1шт.

6

PY35V00009S007

SOLENOID

(2-Speed and Lever Lock)

2шт.

7

PY35V00009S008

SCREW

1шт.

8

PY35V00009S009

COVER

1шт.

9

PY35V00009S010

PLUG

1шт.

10

LC35V00004S007

PLUG

3шт.

11

LC35V00004S008

SCREW

4шт.

12

PY35V00009S014

SCREW

2шт.

13

PY35V00009S015

NUT

1шт.

14

YN30V00080S023

SCREW

2шт.

15

ZD11P01600

O-RING

2шт.

16

ZD12P01000

O-RING

1шт.

17

ZD12P01100

O-RING

4шт.

18

PY35V00009S019

O-RING

1шт.
