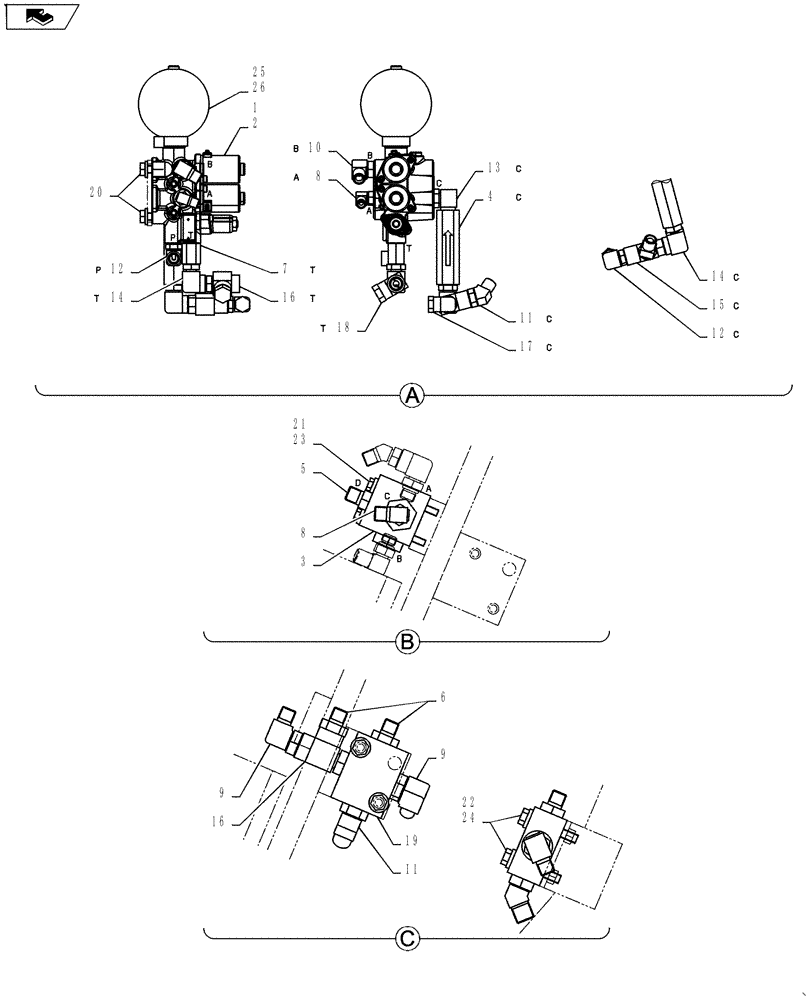

Запчасти Case CX55BMSR (01-033[02]) - CONTROL LINES, VALVE (CANOPY) (35) - HYDRAULIC SYSTEMS

PY64H00116F1

Valve (Canopy), Start Serial: PS02-00101

1шт.

1

PY64H00094F1

Valve

1шт.

2

PY35V00008F1

SOLENOID VALVE

Assembly

1шт.

3

PH26V00001F1

VALVE

Shuttle

1шт.

4

YN50V00020F1

HYDRAULIC OIL FILTER

Inline

1шт.

5

HH25S04004G1

HYD CONNECTOR

1шт.

6

HH25S04006G1

90 ELBOW

2шт.

7

HH25R06006G1

HYD CONNECTOR

1шт.

8

HH35S04004G1

90 ELBOW

2шт.

9

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

2шт.

10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

11

HH45S06006G1

45 ELBOW

3шт.

12

2444Z2894

90 ELBOW

2шт.

13

2444Z3279

90 ELBOW

1шт.

14

YT42H01128P1

90 ELBOW

2шт.

15

PW64H01011P1

TEE

1шт.

16

HH55Q06006G1

TEE

2шт.

17

ZE72X04000

PLUG

1шт.

18

ZE72X06000

PLUG

1шт.

19

PY64H01051P1

BLOCK

1шт.

20

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

21

ZS18C06065

SCREW,Hex, M6 x 65mm

2шт.

22

ZS18C08050

SCREW,Hex, M8 x 50mm

Cap

2шт.

23

ZW16H06000

WASHER

2шт.

24

ZW16H08000

WASHER

2шт.

25

PY64H00122F1

Valve

1шт.

26

2445R373F1

ACCUMULATOR

1шт.
