(35.100.AB[05]) - CONTROL, LINES, MAIN, NIBBLER & BREAKER OR ROTARY, CAB

Запчасти Case CX55B (35.100.AB[05]) - CONTROL, LINES, MAIN, NIBBLER & BREAKER OR ROTARY, CAB (35) - HYDRAULIC SYSTEMS

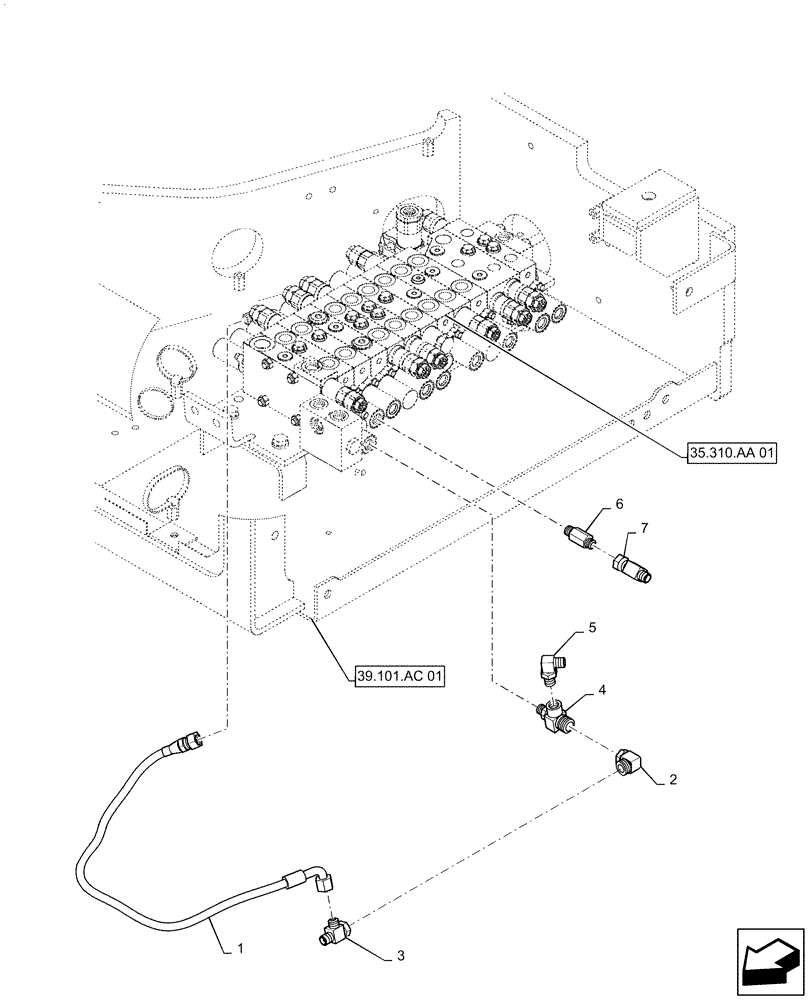

Схема запчастей Case CX55B - (35.100.AB[05]) - CONTROL, LINES, MAIN, NIBBLER & BREAKER OR ROTARY, CAB (35) - HYDRAULIC SYSTEMS
5
2
35.310.aa 01
7
1
4
3
6
39.101.ac 01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

.

Control Lines, Main, Cooler, PS06H00014F1

1шт.

1

HX34L04078DX

HOSE

C/V Pp - C/V Pi2

1шт.

2

2444Z2894

90 ELBOW

1шт.

3

HH55L04004G1

TEE

1шт.

4

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

5

HH35S04004G1

90 ELBOW

1шт.

6

PU64H01002P1

HYD CONNECTOR

Connector

1шт.

7

PX64H01023P1

TEE

1шт.

Выбрано товаров: 8
