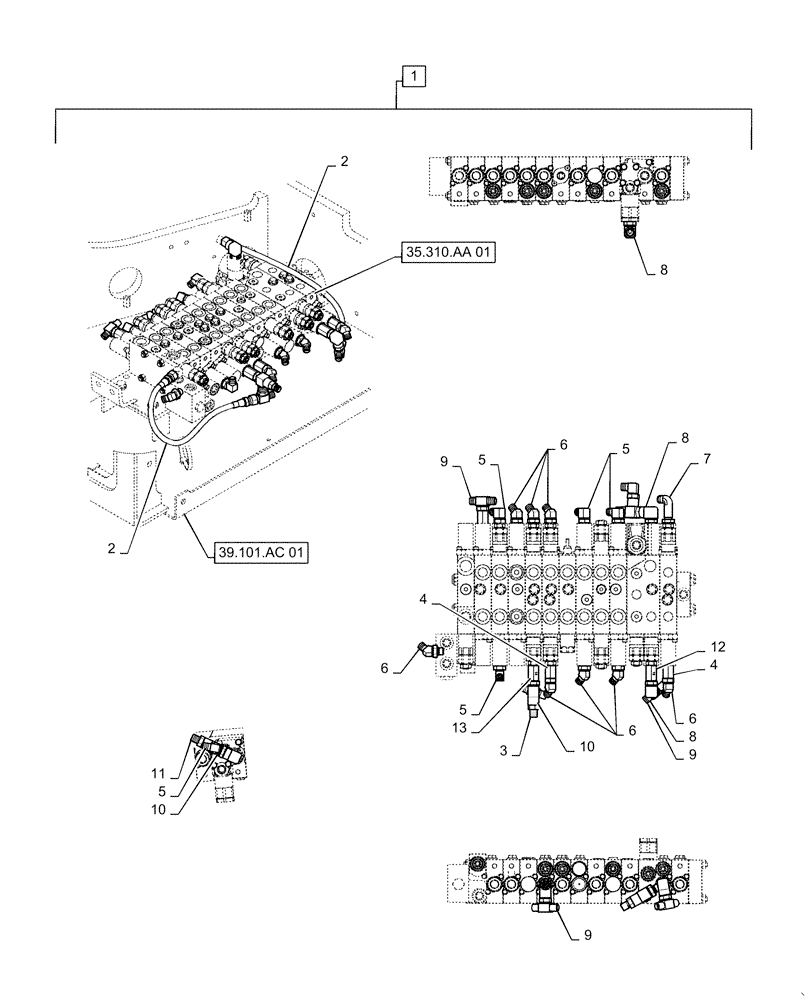

Запчасти Case CX55B (35.100.AB[01]) - CONTROL, LINES, MAIN, NIBBLER & BREAKER (HCP) OR ROTARY (35) - HYDRAULIC SYSTEMS

1

PS06H00003F1

HYD TUBE

Main, Incl 2 - 13

1шт.

2

HX24L04044DX

HOSE

2шт.

C/V Pa2 - C/V Pi1, C/V Pi4 - C/V Pa7

1шт.

3

HH25S04004G1

HYD CONNECTOR

1шт.

4

2444Z2525

HYD CONNECTOR

3шт.

5

HH35S04004G1

90 ELBOW

5шт.

6

HH45S04004G1

45 ELBOW

8шт.

7

PW03H01138P1

90 ELBOW

1шт.

8

2444Z2894

90 ELBOW

Elbow

3шт.

9

HH55L04004G2

TEE

3шт.

10

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

2шт.

11

PU64H01012D4

HYD CONNECTOR

1шт.

12

YY21V00002F1

CHECK VALVE

1шт.

13

YY21V00002F9

CHECK VALVE

1шт.
