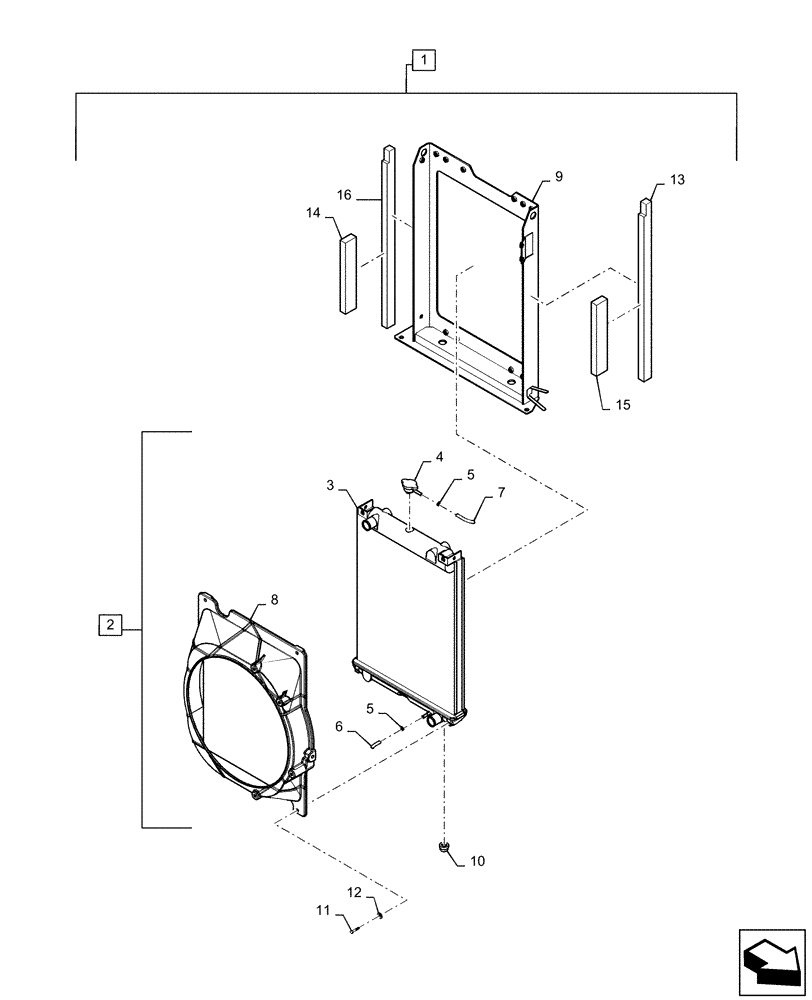

Запчасти Case CX55B (10.400.BF[02]) - RADIATOR, ASSY (10) - ENGINE

1

PS05P00002F1

RADIATOR

Assy, Incl 2 - 16

1шт.

2

PS05P00005F1

RADIATOR

Incl 3 - 7

1шт.

3

PS05P00005S001

RADIATOR

1шт.

4

PM05P00013S002

RADIATOR CAP

1шт.

5

PR05P00008S004

CLIP

4шт.

6

PS05P00005S004

HOSE

1шт.

7

PS05P00005S005

HOSE

1шт.

8

PS05P01032P1

SHROUD

1шт.

9

PS05P01073F1

FRAME

Assy

1шт.

10

PY05P01138P1

RUBBER INSULATOR

2шт.

11

ZS18C06030

SCREW,Hex, M6 x 30mm

Cap

6шт.

12

PY20M01280P1

WASHER

6шт.

13

PS05P01068P1

INSULATION

1шт.

14

PS05P01069P1

INSULATION

1шт.

15

PS05P01070P1

INSULATION

1шт.

16

PS05P01071P1

INSULATION

1шт.
