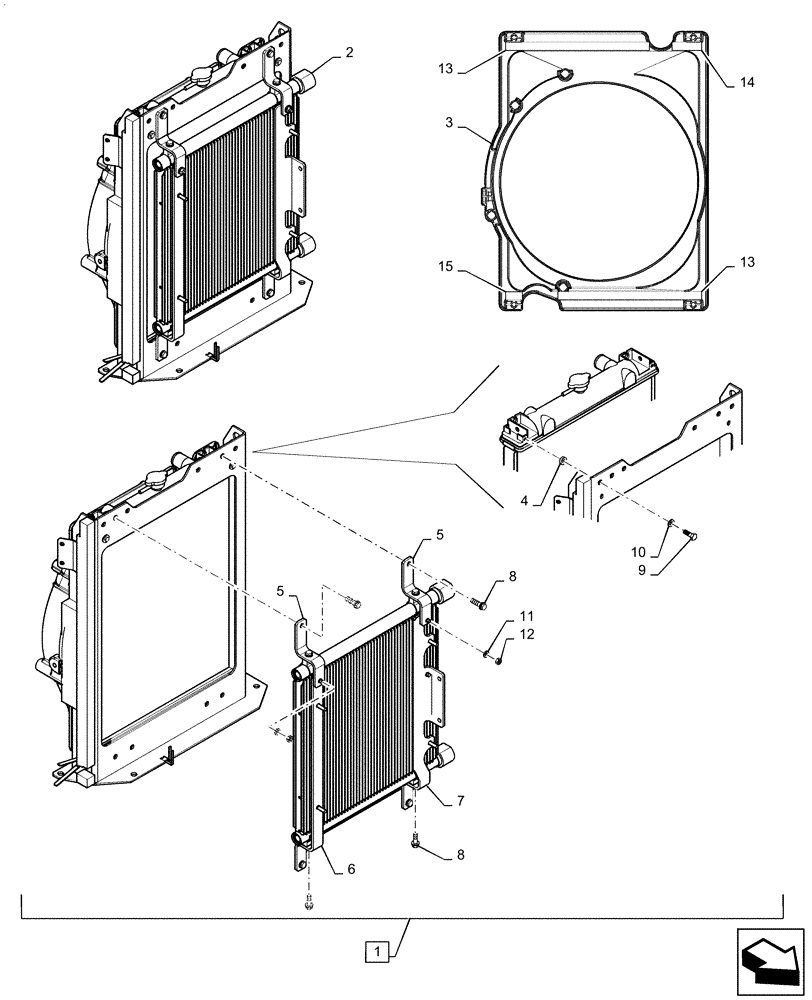

Запчасти Case CX55B (10.400.BF[01]) - RADIATOR, ASSY (10) - ENGINE

1

PS05P00002F1

RADIATOR

Assy, Incl 2 - 15

1шт.

2

PS53V00001P1

COOLER ASSY.

Oil

1шт.

3

PS05P01032P1

SHROUD

1шт.

4

PS05P01023P1

SPACER

2шт.

5

PS05P01024P1

BAR

Flat

2шт.

6

PS05P01025P1

BRACKET

1шт.

7

PS05P01060P1

BRACKET

1шт.

8

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

8шт.

9

ZS18C06030

SCREW,Hex, M6 x 30mm

Cap

6шт.

10

PY20M01280P1

WASHER

6шт.

11

ZW16H08000

WASHER

2шт.

12

ZN18C08007

NUT

2шт.

13

PS05P01045D1

INSULATION

2шт.

14

PS05P01045D2

INSULATION

1шт.

15

PS05P01045D3

INSULATION

1шт.
