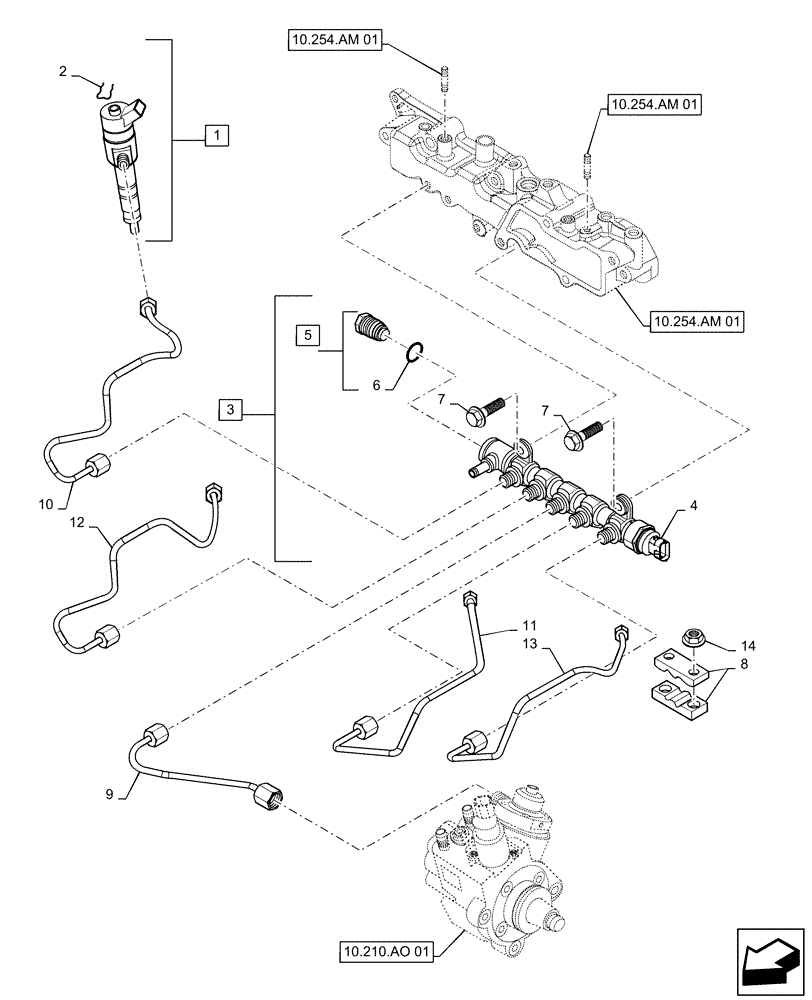

Запчасти Case CX55B (10.218.AF[01]) - FUEL INJECTION VALVE (10) - ENGINE

.

Fuel Injection Valve

1шт.

1

VV129A0053100

FUEL SYSTEM INJECTOR

Assy, Incl 2

4шт.

1

VV12997811871

GASKET

Found Fig 10.101.99(01)

4шт.

2

VV129A0053200

SNAP RING

Retaining

4шт.

3

VV129C0057000

MANIFOLD

Assy, Incl 4 - 7

1шт.

4

VV129A0057100

SENSOR

Rail Pressure

1шт.

5

VV129A0057200

VALVE BODY

Assy, PLV4, , Incl 6

1шт.

6

VV129A0057210

O-RING

PLV4

1шт.

7

VV26106080252

BOLT,M8 x 25mm

2шт.

8

VV12278059100

RETAINER

4шт.

9

VV129A0059700

FUEL TUBE

Assy, Rail In

1шт.

10

VV129C0059810

FUEL TUBE

Assy, Injection

1шт.

11

VV129A0059820

FUEL TUBE

Assy, Injection

1шт.

12

VV129C0059820

FUEL TUBE

Assy, Injection

1шт.

13

VV129A0059830

FUEL TUBE

Assy, Injection

1шт.

14

VV26366060002

NUT,M6

4шт.
