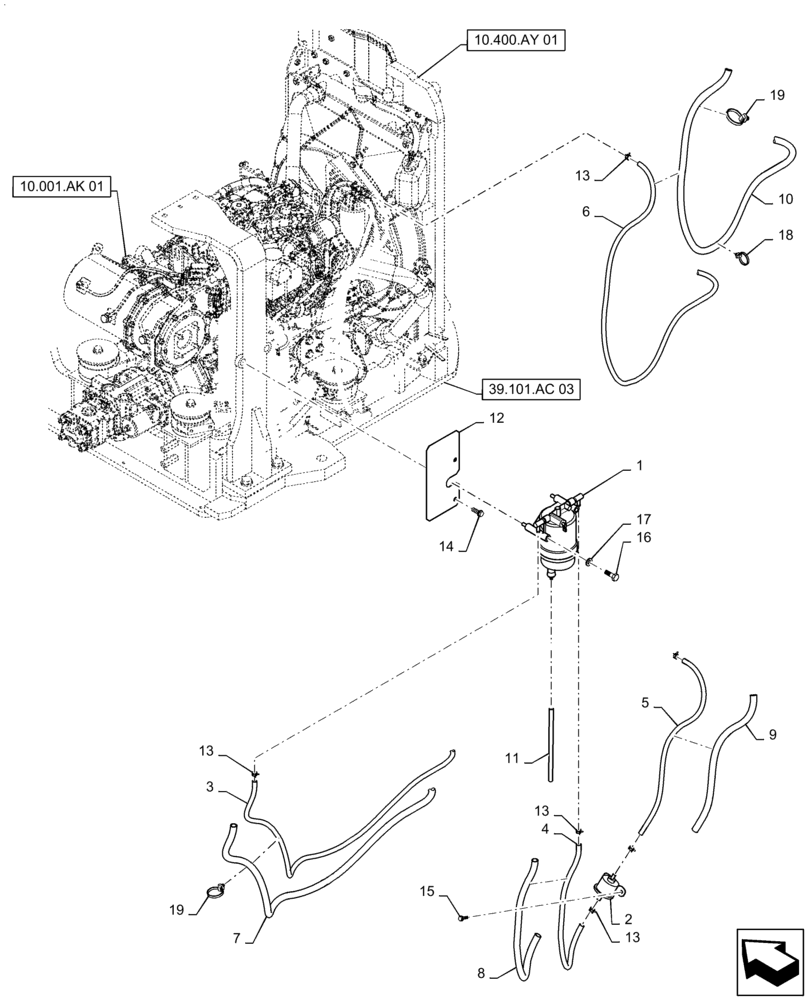

Запчасти Case CX55B (10.216.BA[01]) - FUEL TANK LINES (10) - ENGINE

.

Fuel Lines, PS21P00001F1

1шт.

1

PS21P01001F1

FILTER ASSY

1шт.

1

VV129E2255700

FILTER ASSY

1шт.

2

PW22P00001P1

FUEL PUMP

1шт.

3

PS21P01005D1

HOSE

1шт.

4

PS21P01005D2

HOSE

1шт.

5

PS21P01005D3

HOSE

1шт.

6

PS21P01005D4

HOSE

1шт.

7

HX81X15260DX

TUBE

1шт.

8

HX81X15054DX

TUBE

1шт.

9

HX81X15046DX

TUBE

1шт.

10

HX81X15220DX

TUBE

1шт.

11

HX11Y04038DX

HOSE

1шт.

12

PS21P01009P1

PLATE

1шт.

13

PS21P01010P1

CLIP

8шт.

14

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

2шт.

15

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.

16

ZS18C08100

SCREW,Hex, M8 x 100mm

Cap

2шт.

17

ZW16H08000

WASHER

2шт.

18

YN13E01375P1

CLIP,M8 x 8.20mm Shank

3шт.

19

PY01P01043D3

CABLE TIE,188mm L

Clip

9шт.
