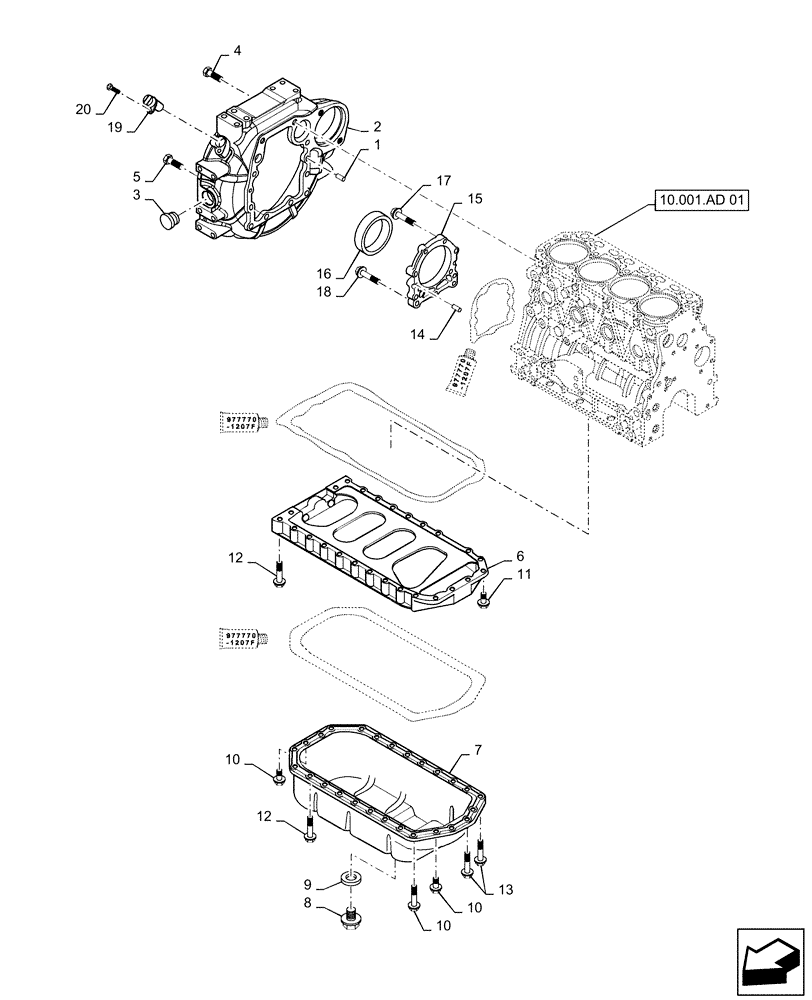

Запчасти Case CX55B (10.103.AK[01]) - FLYWHEEL HOUSING AND OIL SUMP (10) - ENGINE

.

Flywheel Housing and Oil Sump

1шт.

1

VV12910001580

PIN,M8 x 16mm

2шт.

2

VV129A0001602

HOUSING

Flywheel

1шт.

3

VV11962001750

CAP

1шт.

4

VV26206100252

BOLT,M10 x 25mm

6шт.

5

VV26206100302

BOLT,M10 x 30mm

4шт.

6

VV12940001730

SPACER

1шт.

7

VV12943601780

SUMP

Assy, Oil

1шт.

8

VV11964001640

DRAIN PLUG,M22

1шт.

9

VV22190220002

SEAL,21.75mm ID x 30mm OD x 2.5mm Thk

1шт.

10

VV26106080162

BOLT,M8 x 16mm

4шт.

11

VV26106080252

BOLT,M8 x 25mm

2шт.

12

VV26106080452

BOLT,M8 x 45mm

20шт.

13

VV26106080502

BOLT,M8 x 50mm

4шт.

14

VV12910001580

PIN,M8 x 16mm

2шт.

15

VV12910001640

BOX

Case, Assy

1шт.

16

VV12979501780

OIL SEAL

1шт.

17

VV12948601670

BOLT,M8 x 30mm

6шт.

18

VV26106080352

BOLT,M8 x 35mm

3шт.

19

VV129A0021710

SENSOR

Flywheel Rev

1шт.

20

VV26450060162

BOLT,M6 x 16mm

1шт.
