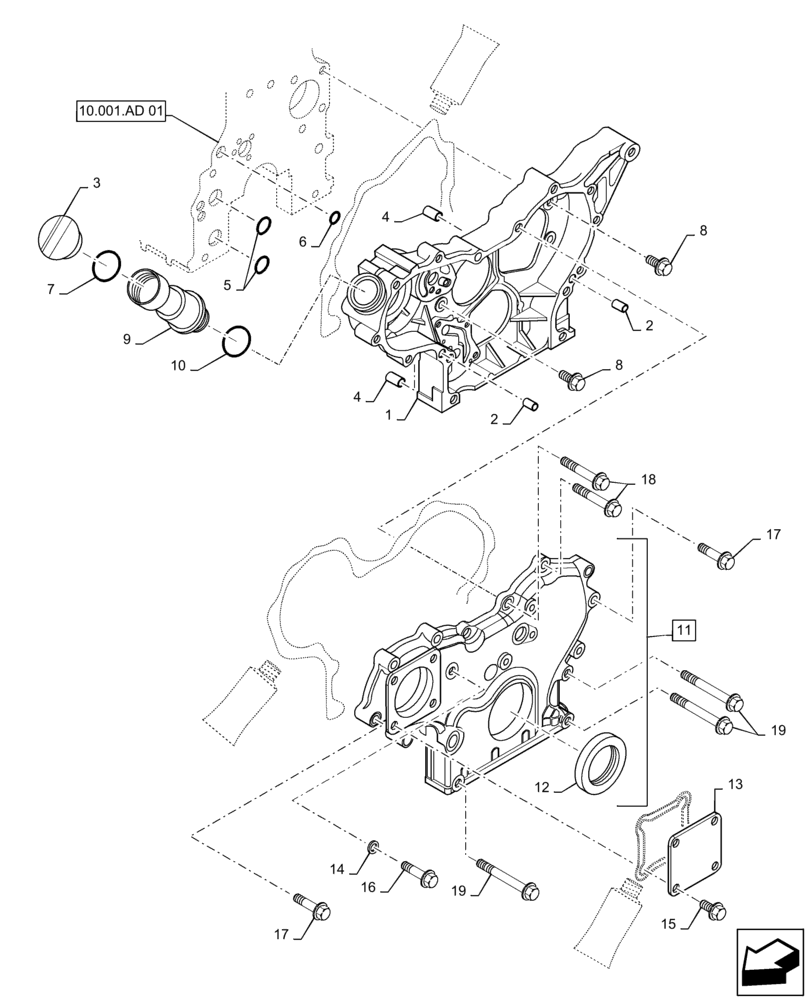

Запчасти Case CX55B (10.102.BB[01]) - GEAR, HOUSING (10) - ENGINE

.

Gear Housing

1шт.

1

VV129A0001500

HOUSING

Case, Gear

1шт.

2

VV12910001580

PIN,M8 x 16mm

2шт.

3

VV12416001751

CAP

Cover, Filler

1шт.

4

VV12979501950

PIPE

Knock L=18

2шт.

5

VV11960932040

O-RING

P16

2шт.

6

VV11962432040

O-RING

1шт.

7

VV24311000320

O-RING

1AP32.0

1шт.

8

VV26106080162

BOLT,M8 x 16mm

M8X16 Plated

3шт.

9

VV17103111741

PIPE

Engine Oil Fill

1шт.

10

VV24311000320

O-RING

1шт.

11

VV129A0001550

COVER ASSY

Assy, Gearcase, Incl 12

1шт.

12

VV11993401800

SEAL

Oil, Incl in 11

1шт.

13

VV12424001871

COVER

Square

1шт.

14

VV22190080002

SEAL

1шт.

15

VV26106080162

BOLT,M8 x 16mm

M8X16 Plated

4шт.

16

VV26106080352

BOLT,M8 x 35mm

1шт.

17

VV26106080402

BOLT,M8 x 40mm

7шт.

18

VV26106080602

BOLT,M8 x 60mm

3шт.

19

VV26106080852

SCREW,M8 x 85mm

M8X85 Plated

4шт.
