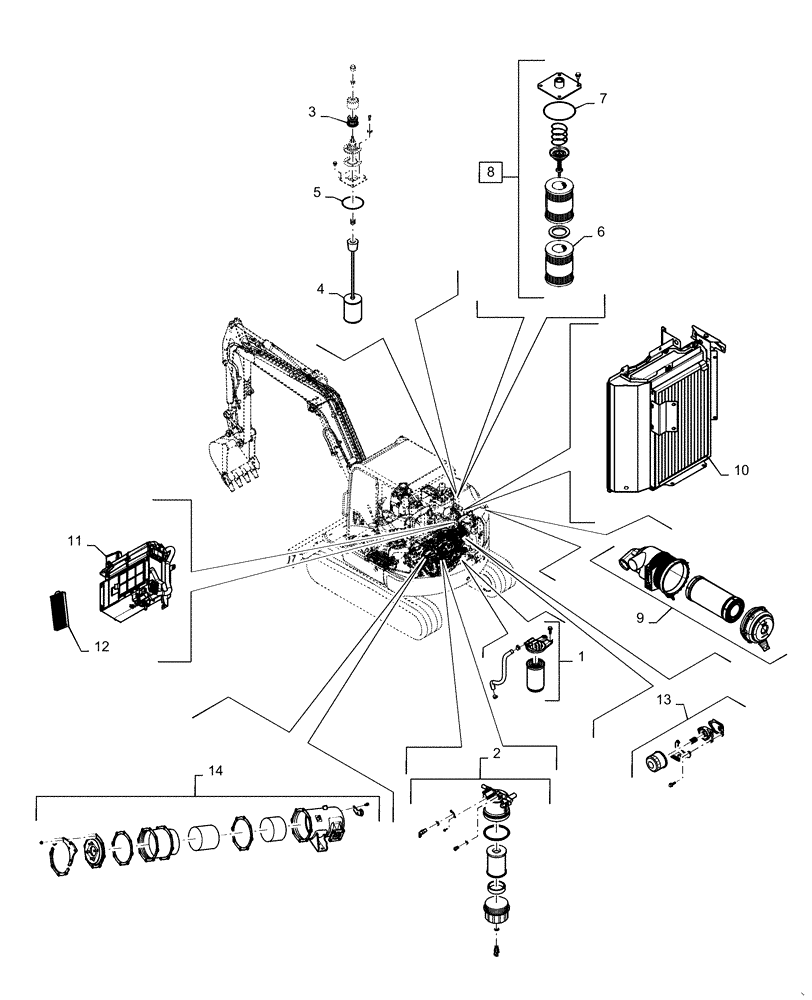

Запчасти Case CX55B (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE

****

FUEL

1шт.

1

VV129A0055800

FUEL FILTER

Engine

1шт.

2

VV129A0055730

ELEMENT

Water Separator

1шт.

****

HYDRAULIC OIL

1шт.

3

YN57V00002S010

ELEMENT

Breather, Hydraulic Tank

1шт.

4

PM50V00017S001

FILTER STRAINER

Suction, Hydraulic Tank

1шт.

5

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

Strainer, Hydraulic Tank

1шт.

6

YR52V01003P2

HYDRAULIC OIL FILTER

Return, Hydraulic Tank

2шт.

7

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

Filter, Hydraulic Tank

1шт.

8

YR52V01004R400

REPAIR KIT

Filter Kit, Return, Hydraulic Tank

1шт.

Incl 6 (2), 7 (1), and YR52V01001S002 (1)

1шт.

****

AIR

1шт.

9

PS11P00007S003

AIR FILTER

Outer

1шт.

PS11P00003S001

AIR FILTER

Inner - Not Illustrated

1шт.

10

PS50V01008P1

FILTER

Radiator Guard

1шт.

11

PS50V01006P1

CAB FILTER

Air Conditioner (Inner)

1шт.

12

PS50V01005P1

CAB FILTER

Air Conditioner (Outer)

1шт.

****

ENGINE OIL

1шт.

13

VV12915035153

ENGINE OIL FILTER

1шт.

****

EXHAUST

1шт.

14

VV129A0016400

HOUSING

DPF, Soot

1шт.
