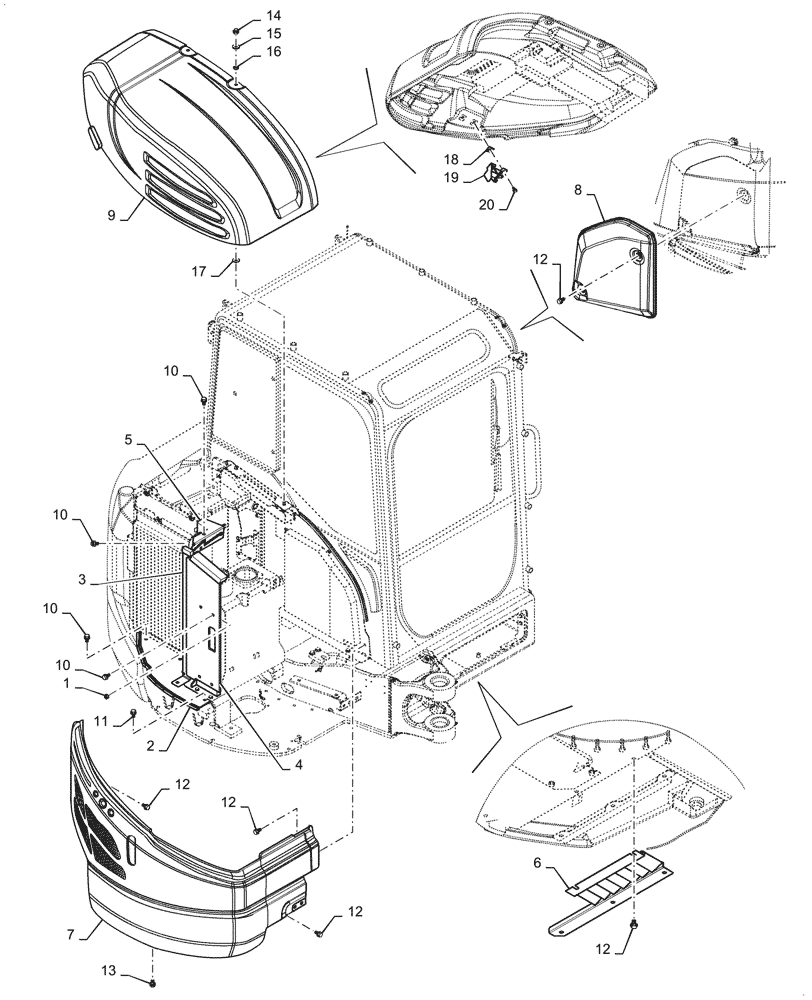

Запчасти Case CX55B (90.150.BJ[11]) - GUARD, MOUNTING - TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case CX55B - (90.150.BJ[11]) - GUARD, MOUNTING - TROPICAL COOLING PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/5539995.png)
8
17
3
14
5
7
16
12
15
12
12
10
12
1
12
6
10
4
10
11
2
19
10
20
13
9
18
№
Артикул
Название
Примечание
Количество
1
PS33H01031P1
GROMMET
4шт.
2
PS21C01615F1
Assy
GUARD
1шт.
3
PS21C01587F1
Assy
GUARD
1шт.
4
PS21C01591F1
COVER ASSY
1шт.
5
PS22C01235F1
Assy
BRACKET
1шт.
6
PS24C01033P1
COVER
1шт.
7
PS21C01598F1
Assy
PANEL
1шт.
8
PS21C01602F1
Assy
PANEL
1шт.
9
PS21C01604F1
COVER ASSY
1шт.
10
ZM73C10016
BOLT,M10x16mm - Course Thread
10шт.
11
ZM73C10025
BOLT,M10x25mm - Course Thread
2шт.
12
ZM73C10020
BOLT,M10x20mm - Course Thread
11шт.
13
ZM73C10030
BOLT,M10x30mm - Course Thread
3шт.
14
ZN46C10018
NUT
2шт.
15
2418T21137
WASHER
2шт.
16
PX21C01112P1
COLLAR
2шт.
17
PX21C01457P1
RUBBER WASHER
2шт.
18
PY21C01042D3
SPACER
2шт.
19
PS21C01347F1
STRIKER
1шт.
20
ZM73C08016
BOLT,M8x16mm - Course Thread
2шт.
Выбрано товаров: 20
