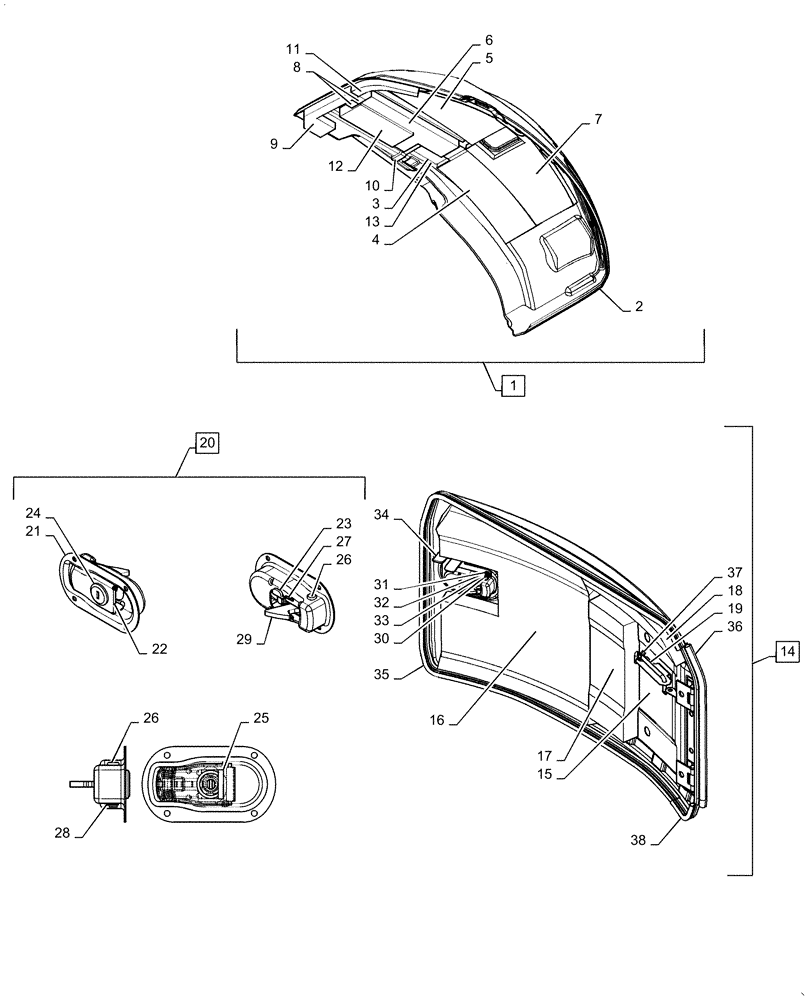

Запчасти Case CX55B (90.150.BJ[09]) - GUARD, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Guard Install, PS21C00002F1

1шт.

1

PS21C01416F1

COVER ASSY

Incl 2 - 13

1шт.

2

PS21C01269P1

COVER

1шт.

3

PS21C01491P1

PLATE

1шт.

4

PS21C01498P1

INSULATION

1шт.

5

PS21C01080P1

INSULATION

1шт.

6

PS21C01469P1

INSULATION

1шт.

7

PS21C01272P1

INSULATION

1шт.

8

PS21C01477P1

RUBBER STRIP

1шт.

9

PS21C01478P1

RUBBER STRIP

1шт.

10

PS21C01499P1

RUBBER STRIP

1шт.

11

PS21C01465P1

RUBBER STRIP

1шт.

12

PS21C01421P1

INSULATION

1шт.

13

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

1шт.

14

PS22C00001F1

ENGINE HOOD

Bonnet Assy, Incl 15 - 20, 30 - 38

1шт.

14

PS22C00001F1%C

ENGINE HOOD

Bonnet Assy, Incl 15 - 20, 30 - 38

1шт.

15

PS22C01093P2

ENGINE HOOD

Bonnet

1шт.

16

PS22C01100P1

INSULATION

1шт.

17

PS22C01101P1

INSULATION

1шт.

18

PS22C01102P1

INSULATION

1шт.

19

PS22C01097P1

STAY

1шт.

20

YY21C04079F1

LOCK

Incl 21 - 29

1шт.

21

YY21C04077P1

HOUSING

case

1шт.

22

YY21C04078P1

HANDLE

1шт.

23

YY21C04169P1

PLATE

1шт.

24

YY21C03567P1

LOCK

1шт.

25

YY21C03803P1

SPRING

1шт.

26

YY21C03467P1

PIN

1шт.

27

YY21C03767P1

SPRING

1шт.

28

ZR36X00700

RING

Snap

1шт.

29

YY21C04080P1

PLATE

1шт.

30

PH22C01023P1

BOLT

1шт.

31

ZW26X05000

LOCK WASHER

1шт.

32

ZW16H05000

WASHER

1шт.

33

ZN18C05004

NUT

1шт.

34

PW22C01160P3

BRACKET

1шт.

35

PS21C01471D1

WEATHERSTRIP

1шт.

36

YR21C01165DC

WEATHERSTRIP

1шт.

37

YR21C01123P1

COLLAR

Clip

1шт.

38

YR21C01168DF

WEATHERSTRIP

1шт.
