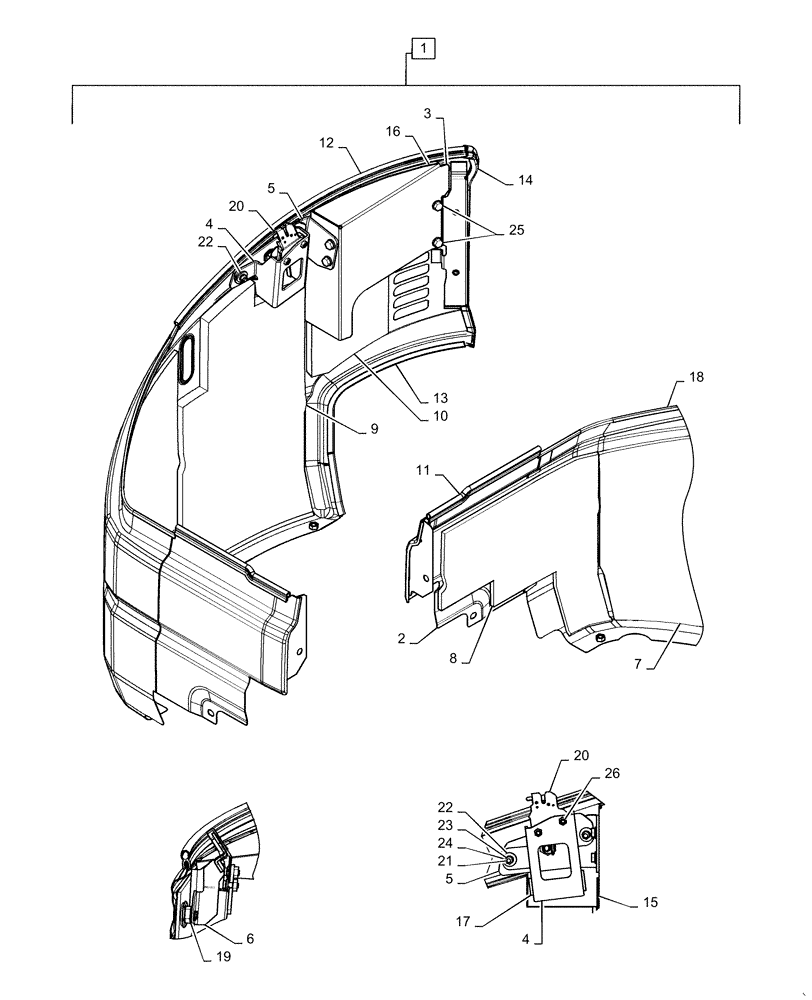

Запчасти Case CX55B (90.150.BJ[08]) - GUARD, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

.

Guard Install, PS21C00002F1

1шт.

1

PS21C01333F1

PANEL

Assy, Incl 2 - 26

1шт.

2

PS21C01362P2

PANEL

1шт.

3

PS21C01400P1

COVER

1шт.

4

PS21C01350P1

PLATE

1шт.

5

PS21C01341P1

PLATE

1шт.

6

PS21C01344P1

PLATE

1шт.

7

PS21C01052P1

INSULATION

1шт.

8

PS21C01223P1

INSULATION

1шт.

9

PS21C01415P1

INSULATION

1шт.

10

PS21C01381P1

INSULATION

1шт.

11

2427P1836D20

WEATHERSTRIP

1шт.

12

PM21C01152DC

WEATHERSTRIP

1шт.

13

PM21C01091D3

WEATHERSTRIP

1шт.

14

YR21C01251D3

WEATHERSTRIP

1шт.

15

YR21C01168DJ

WEATHERSTRIP

1шт.

16

YR21C01168DP

WEATHERSTRIP

1шт.

17

LS21C01093DW

TRIM

2шт.

18

PF22C01013D7

TRIM

1шт.

19

YR22C01025P2

LOCK

1шт.

20

YT21C01034P2

CATCH

1шт.

21

PW21C01413P1

CAPSCREW

2шт.

22

HY25X10027G1

WASHER,10mm ID x 27mm OD x 3.2mm Thk

2шт.

23

ZW26X08000

LOCK WASHER

2шт.

24

ZN18C08007

NUT

2шт.

25

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

4шт.

26

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.
