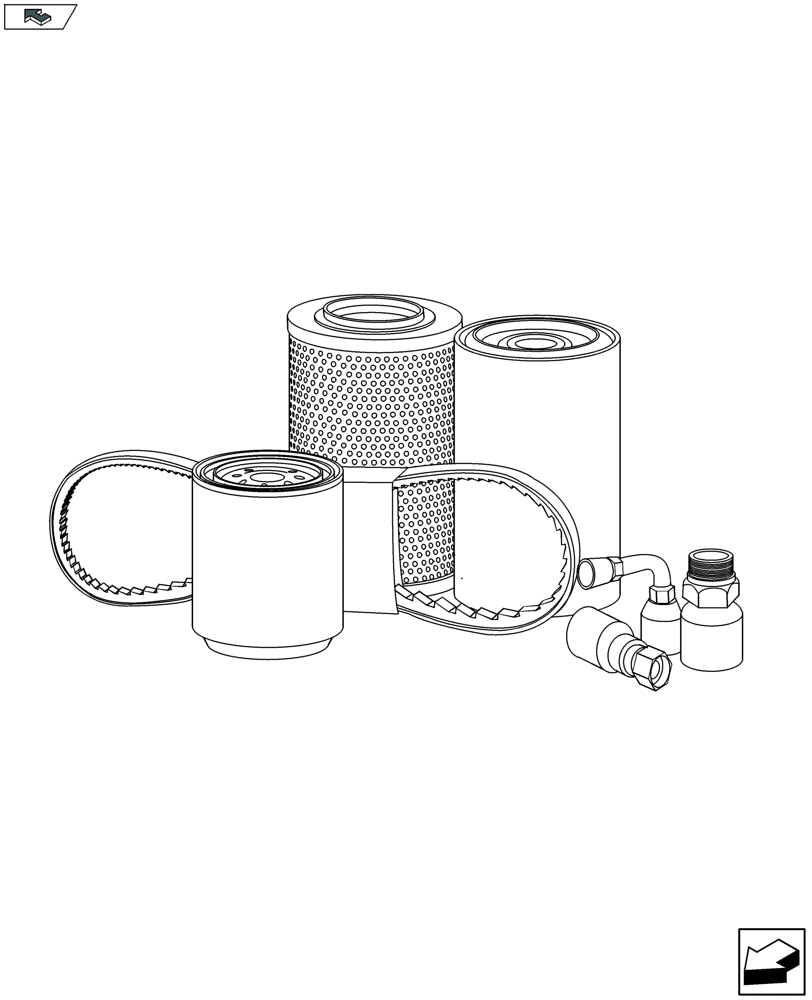

Запчасти Case CX55B (05.100.01[02]) - INITIAL STOCKING LIST (ISL) LIST B (05) - SERVICE & MAINTENANCE

1

2436R330S5

GASKET

1шт.

2

LE15V00006R440

KIT

Travel Motor

1шт.

3

LE15V00006R460

KIT

Travel Motor

1шт.

4

LP50S00003P1

BATTERY CUT-OUT

(Battery Master Switch - Key YN50S01011P1)

1шт.

5

PS01V00001R300

KIT

Boom Cylinder

1шт.

6

PS01V00001R400

KIT

Boom Cylinder

1шт.

7

PS01V00002R300

KIT

Arm Cylinder

1шт.

8

PS01V00002R400

KIT

Arm Cylinder

1шт.

9

PS01V00003R300

KIT

Bucket Cylinder

1шт.

10

PS01V00003R400

KIT

Bucket Cylinder

1шт.

11

PS01V00004R300

KIT

Swing Cylinder

1шт.

12

PS01V00004R400

KIT

Swing Cylinder

1шт.

13

PS01V00005R300

KIT

Dozer Cylinder

1шт.

14

PS01V00005R400

KIT

Dozer Cylinder

1шт.

15

PS50S00001F1

PRESSURE SWITCH

Hyd Low Pressure

1шт.

16

PS50S00002F1

ROCKER SWITCH

DPF Manual Regeneration

1шт.

17

PS50S00005P1

ROCKER SWITCH

A/C

1шт.

18

PS50S00006F1

ROCKER SWITCH

ECO Mode

1шт.

19

PS52S00002F1

SENSOR

Fuel Level

1шт.

20

PW80S00003F1

LIGHT ASSY.

1шт.

21

PX30V00082R200

REPAIR KIT

Travel Alarm Pilot Valve

1шт.

22

PY53C00001P1

WIPER ARM

1шт.

23

VV11976139450

PRESSURE SWITCH

Engine Oil Pressure

1шт.

24

VV12905477800

POTENTIOMETER

Throttle (Used for CMP)

1шт.

25

VV12992777920

RELAY,70 amp

1шт.

26

VV129A0051200

TEMPERATURE SENDER

Fuel Temperature

1шт.

27

VV129C0077300

RESISTOR

1шт.

28

VV19846152950

RELAY

(Used for Accuator)

1шт.

29

PM30V00019R100

REPAIR KIT

Travel Alarm Pilot Valve

1шт.

30

PS10V00001R100

KIT

Hyd Pump

1шт.

31

PS10V00001R200

KIT

Hyd Pump

1шт.

32

PS10V00003R100

SEAL KIT

Hyd Pump

1шт.

33

PS15V00003R400

KIT

Travel Motor

1шт.

34

PS15V00003R410

KIT

Travel Motor

1шт.

35

PS15V00003R430

KIT

Travel Motor

1шт.

36

PS15V00003R450

KIT

Travel Motor

1шт.

37

PS15V00003R470

KIT

Travel Motor

1шт.

38

PY15V00014R640

REPAIR KIT

Swing Motor

1шт.

39

2445R138D19

SEAL,50mm ID x 60mm OD x 4mm Thk

1шт.

40

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

1шт.

41

PA24S00002P3

RELAY,DC12V

Sequence Box

1шт.

42

PA50S00001P1

LIMIT SWITCH

Lever Lock

1шт.

43

PM50S00005P1

SWITCH

Deceleration

1шт.

44

PV24E01001P2

SWITCH

Working Light

1шт.

45

PW35V00003F1

SOLENOID VALVE

1шт.

46

2436U1277S213

SEAL

1шт.

47

2445R138D5

SEAL,40mm ID x 50mm OD x 4mm Thk

1шт.

48

2445R63

SEAL

1шт.

49

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

1шт.

50

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

51

PB30V00002R100

REPAIR KIT

Dozer Pilot Valve

1шт.

52

PH01V00027S021

RING

1шт.

53

PH22V00013F1

VALVE

Control

1шт.

54

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.

55

PH26V00001F1

VALVE

1шт.

56

PH30V00007F1

VALVE

1шт.

57

PH42H01008DD

HOSE,6.3mm ID x 940mm L

1шт.

58

PM24S00001P1

RELAY

Neutral Start

1шт.

59

PM50S01001P1

SET OF 2 KEYS

1шт.

60

PM64D01023P1

SEAL

1шт.

61

PM80S00005S010

BULB,12V, 55W

1шт.

62

PW03M01958S888

SEAL

1шт.

63

PW03M01959S482

SWITCH

Grip

1шт.

64

PW21V00003F1

VALVE

1шт.

65

PW35V00002F1

SOLENOID VALVE

(Used Nibbler Open/Close Proportional, Revolution Left/Right Proportional, Extra Proportional Left/Right)

1шт.

66

PW50E00003F1

IGNITION SWITCH

1шт.

67

PW50S00007F1

IGNITION SWITCH

1шт.

68

PW55V00001S010

SEAL

1шт.

69

PW80S00003S001

LAMP

1шт.

70

PY01V00036R300

REPAIR KIT

Dozer Cylinder

1шт.

71

PY15V00014R610

REPAIR KIT

Swing Motor

1шт.

72

PY15V00014R620

REPAIR KIT

Swing Motor

1шт.

73

PY15V00014R630

REPAIR KIT

Swing Motor

1шт.

74

PY15V00014R660

REPAIR KIT

Swing Motor

1шт.

75

PY22V00009R100

REPAIR KIT

Swing Motor

1шт.

76

PY22V00016F1

VALVE PRESSURE RELIE

Swing Motor

1шт.

77

PY35V00009S007

SOLENOID

1шт.

78

PY50C01010P2

SEAL

1шт.

79

PY50S00004P2

SWITCH

Windshield Wiper Washer

1шт.

80

PY51D01006P1

SPROCKET,19 teeth

1шт.

81

PY64H00003F1

HYDRAULIC VALVE

1шт.

82

PY80S00005P1

BEACON

1шт.

83

VV11993401800

SEAL

1шт.

84

VV12900434802

DIPSTICK

1шт.

85

YJ35V00004F2

SOLENOID VALVE

Power Shift, Cooler Spec

1шт.

86

YN30V00115S013

SEAL

1шт.

87

YN58S00009F3

GAUGE ASSY.

1шт.
